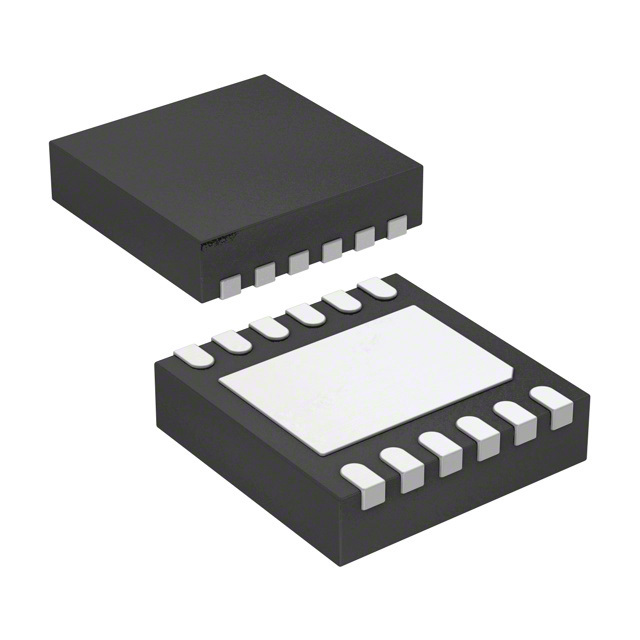

MAX17761ATC+

SKU: 129713

Manufacturer: Maxim Integrated

Conv DC-DC 4.5V to 76V Synchronous Step Down Single-Out 0.8V to 68.4V 1A 12-Pin TDFN EP Tube

7790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	200 to 600
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 68.4
Maximum Output Current (A)	1
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	76
Operating Supply Voltage (V)	4.5 to 76
Typical Switch Current (A)	1.6
Typical Quiescent Current (uA)	4000
Efficiency (%)	90
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	TDFN EP
Pin Count	12
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.72
Package Length	3
Package Width	3
PCB changed	12
