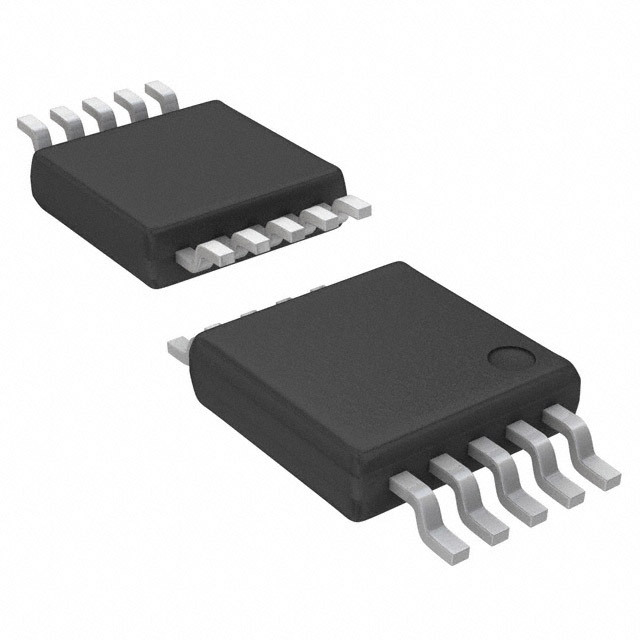

MAX17499AAUB+

SKU: 16559

Manufacturer: Maxim Integrated

Current Mode PWM Controller 1.23V to 400V 1A 25kHz to 625kHz 10-Pin uMAX

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current
Topology	Flyback
Number of PWM Outputs	1
Switching Frequency (kHz)	25 to 625
Maximum Duty Cycle (%)	50(Typ)
Output Current (mA)	1000
Output Voltage (V)	1.23 to 400
Operating Supply Voltage-Min (V)	9.5
Operating Supply Voltage-Max (V)	24
Maximum Power Dissipation (mW)	444.4
Adjustable Output	Yes
On/Off Pin	Yes
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Pin Count	10
Standard Package Method	SOP
Original Package	uMAX
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.05(Max)
Package Width	3.05(Max)
PCB changed	10
