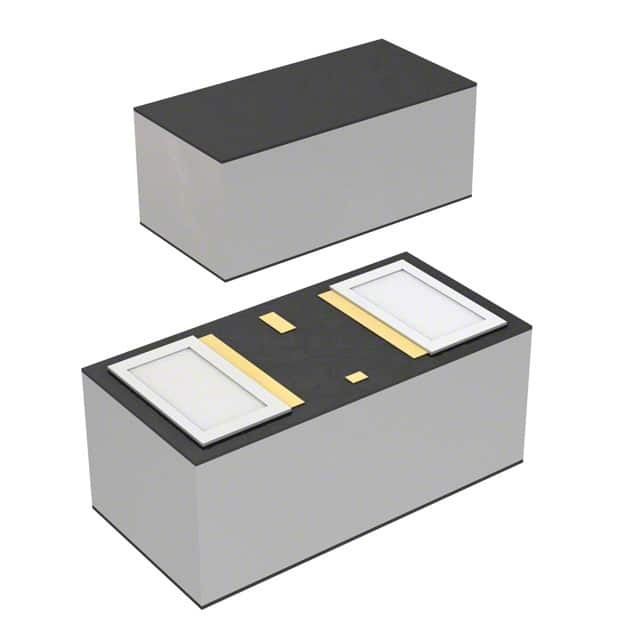

SP3522-01UTG Littelfuse

SP3522-01UTG

SKU: 158462

Manufacturer: Littelfuse

ESD Suppressor Diode TVS Bi-Dir 7V Automotive 2-Pin DFN T/R

Request Free Samples

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	7
Maximum Clamping Voltage (V)	14.5(Typ)
Maximum Peak Pulse Current (A)	2.5
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Capacitance Value (pF)	0.15(Typ)
Operating Temperature-Min	-45
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.26
Package Length	0.6
Package Width	0.3
