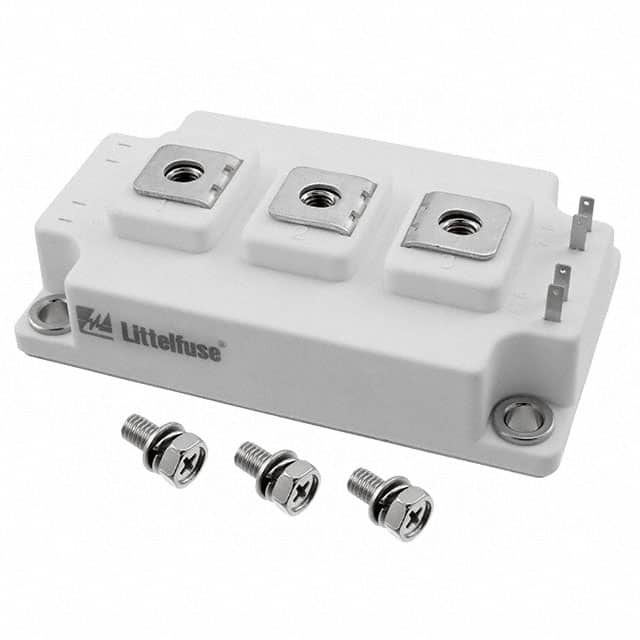

MG12400D-BN2MM

SKU: 52143

Manufacturer: Littelfuse

Trans IGBT Module N-CH 1200V 580A 1925000mW 7-Pin Package D Bulk

950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Technology	Field Stop
Channel Type	N
Configuration	Dual
Typical Collector Emitter Saturation Voltage (V)	1.7
Collector-Emitter Voltage-Max (V)	1200
Maximum Power Dissipation (mW)	1925000
Maximum Gate Emitter Voltage (V)	±20
Maximum Continuous Collector Current (A)	580
Maximum Gate Emitter Leakage Current (uA)	0.4
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Bulk
Original Package	Package D
Pin Count	7
Standard Package Method	Package D
Terminal Form	Screw
Package Height	30.5
Package Length	108
Package Width	62
