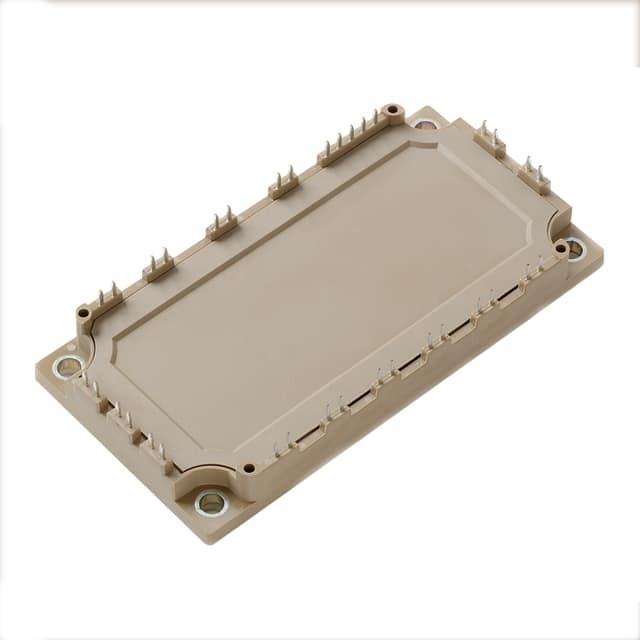

MG12150W-XN2MM

SKU: 140891

Manufacturer: Littelfuse

Trans IGBT Module N-CH 1200V 200A 625000mW 35-Pin Bulk

1550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Technology	Trench
Channel Type	N
Configuration	Hex
Typical Collector Emitter Saturation Voltage (V)	1.7
Collector-Emitter Voltage-Max (V)	1200
Maximum Power Dissipation (mW)	625000
Maximum Gate Emitter Voltage (V)	±20
Maximum Continuous Collector Current (A)	200
Maximum Gate Emitter Leakage Current (uA)	0.4
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Bulk
Pin Count	35
Terminal Form	Screw
Package Height	17
Package Length	122
Package Width	62
