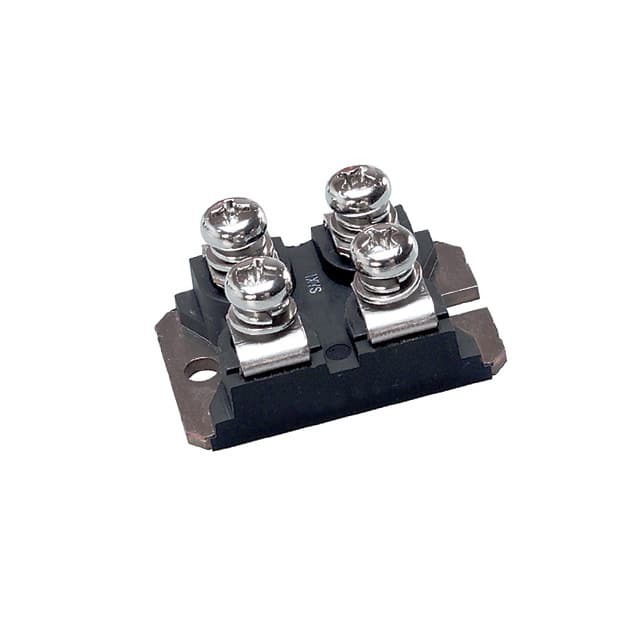

IXTN170P10P

SKU: 65890

Manufacturer: Littelfuse

Trans MOSFET P-CH 100V 170A 4-Pin SOT-227B

920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	170
Maximum Drain Source Resistance (mOhm)	14@10V
Typical Gate Charge @ Vgs (nC)	240@10V
Typical Gate Charge @ 10V (nC)	240
Typical Input Capacitance @ Vds (pF)	12600@25V
Maximum Power Dissipation (mW)	890000
Typical Fall Time (ns)	45
Typical Rise Time (ns)	75
Typical Turn-Off Delay Time (ns)	82
Typical Turn-On Delay Time (ns)	32
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOT-227B
Pin Count	4
Terminal Form	Screw
Package Length	38.23(Max)
Package Width	25.42(Max)
