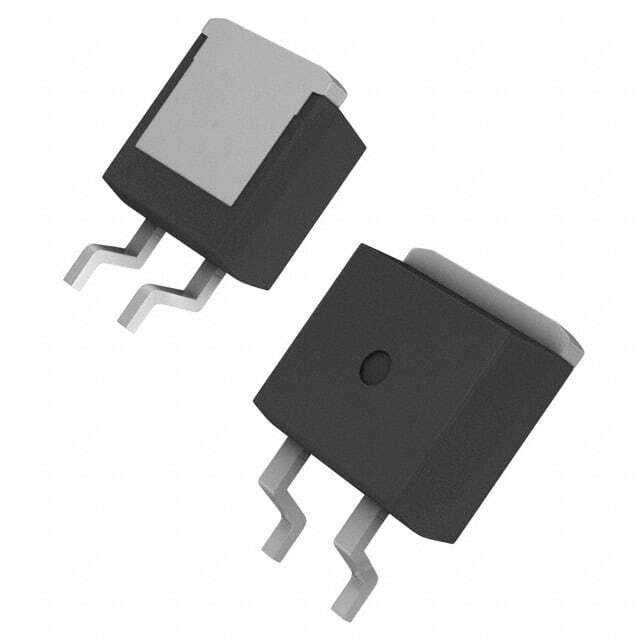

IXTA26P20P-TRL

SKU: 54676

Manufacturer: Littelfuse

Trans MOSFET P-CH 200V 26A 3-Pin(2+Tab) D2PAK T/R

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	200
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	26
Maximum Drain Source Resistance (mOhm)	170@10V
Typical Gate Charge @ Vgs (nC)	56@10V
Typical Gate Charge @ 10V (nC)	56
Typical Input Capacitance @ Vds (pF)	2740@25V
Maximum Power Dissipation (mW)	300000
Typical Fall Time (ns)	21
Typical Rise Time (ns)	33
Typical Turn-Off Delay Time (ns)	46
Typical Turn-On Delay Time (ns)	18
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.65(Max)
PCB changed	2
