IXTA26P20P

SKU: 111072

Manufacturer: Littelfuse

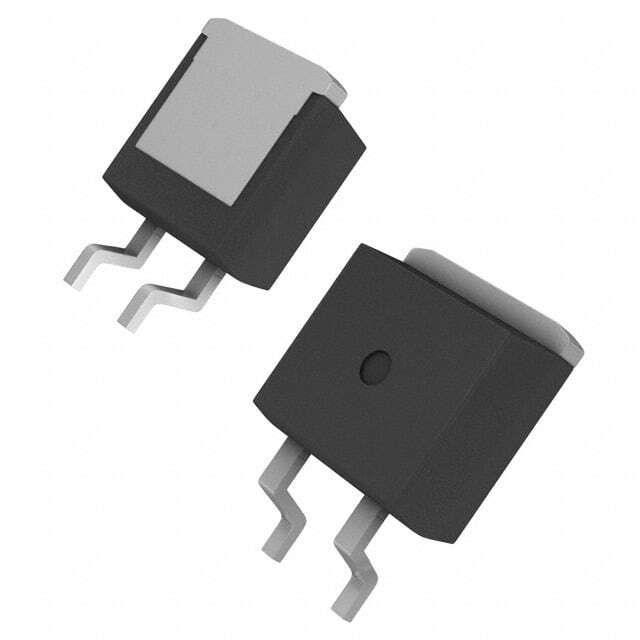

Trans MOSFET P-CH 200V 26A 3-Pin(2+Tab) D2PAK

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	PolarP
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	200
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	26
Maximum Drain Source Resistance (mOhm)	170@10V
Typical Gate Charge @ Vgs (nC)	56@10V
Typical Gate Charge @ 10V (nC)	56
Typical Input Capacitance @ Vds (pF)	2740@25V
Maximum Power Dissipation (mW)	300000
Typical Fall Time (ns)	21
Typical Rise Time (ns)	33
Typical Turn-Off Delay Time (ns)	46
Typical Turn-On Delay Time (ns)	18
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.65(Max)
PCB changed	2
