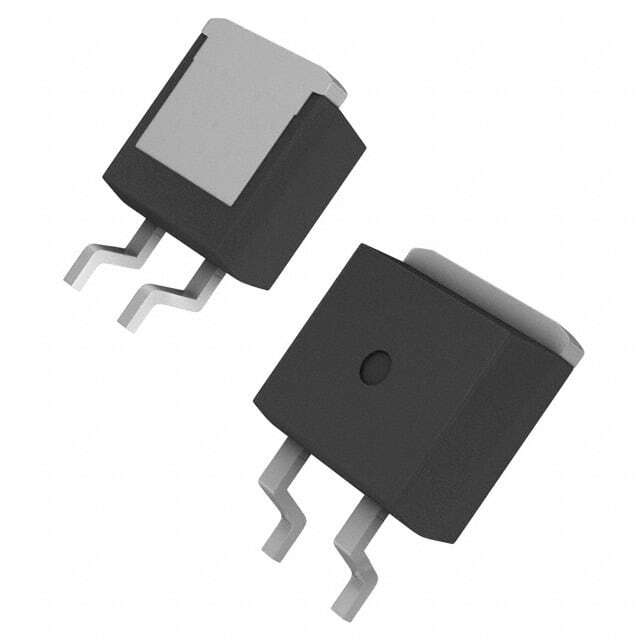

IXTA1R6N50D2

SKU: 115307

Manufacturer: Littelfuse

Trans MOSFET N-CH 500V 1.6A 3-Pin(2+Tab) TO-263AA

1790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	1.6(Min)
Maximum Drain Source Resistance (mOhm)	2300@0V
Typical Gate Charge @ Vgs (nC)	23.7@5V
Typical Input Capacitance @ Vds (pF)	645@25V
Maximum Power Dissipation (mW)	100000
Typical Fall Time (ns)	41
Typical Rise Time (ns)	70
Typical Turn-Off Delay Time (ns)	35
Typical Turn-On Delay Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-263AA
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.29(Max)
Package Width	9.65(Max)
PCB changed	2
