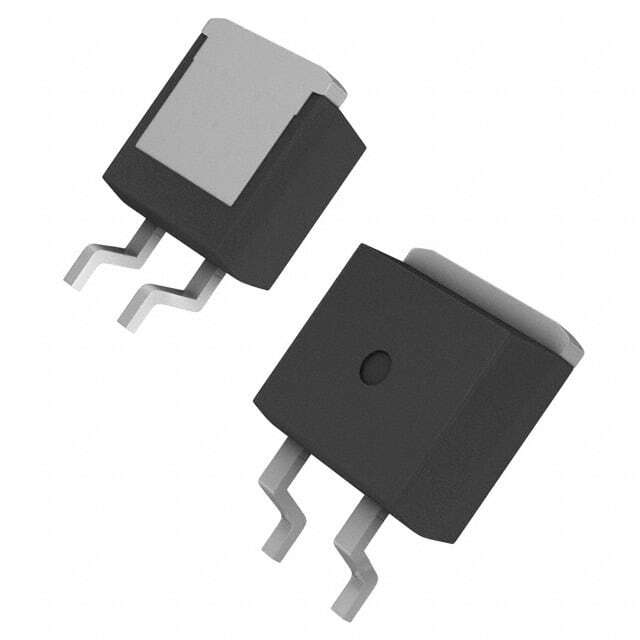

IXTA1R4N120P

SKU: 139527

Manufacturer: Littelfuse

Trans MOSFET N-CH 1.2KV 1.4A 3-Pin(2+Tab) D2PAK

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	1200
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	1.4
Maximum Drain Source Resistance (mOhm)	13000@10V
Typical Gate Charge @ Vgs (nC)	24.8@10V
Typical Gate Charge @ 10V (nC)	24.8
Typical Input Capacitance @ Vds (pF)	666@25V
Maximum Power Dissipation (mW)	86000
Typical Fall Time (ns)	29
Typical Rise Time (ns)	27
Typical Turn-Off Delay Time (ns)	78
Typical Turn-On Delay Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.29(Max)
Package Width	9.65(Max)
PCB changed	2
