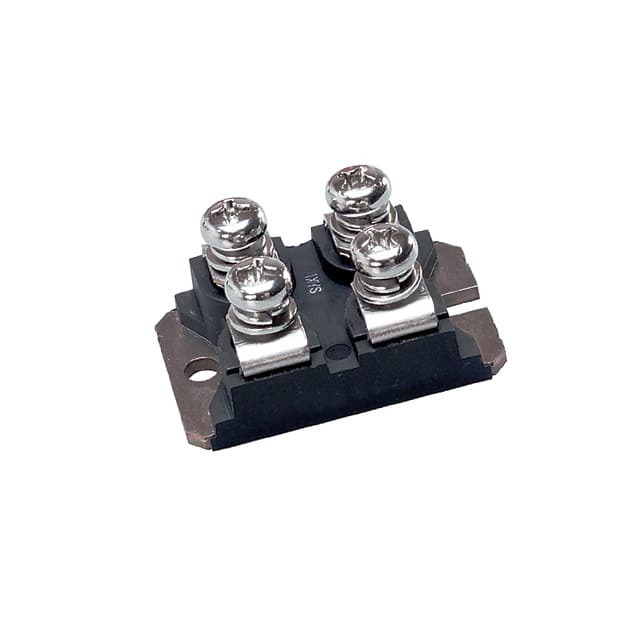

    IXFN132N50P3

    SKU: 87005
    Manufacturer: Littelfuse
    Trans MOSFET N-CH 500V 112A 4-Pin SOT-227B
    910 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single Dual Source
    Process Technology HiperFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 500
    Maximum Gate Source Voltage (V) ±30
    Maximum Gate Threshold Voltage (V) 5
    Maximum Continuous Drain Current (A) 112
    Maximum Gate Source Leakage Current (nA) 200
    Maximum IDSS (uA) 50
    Maximum Drain Source Resistance (mOhm) 39@10V
    Typical Gate Charge @ Vgs (nC) 250@10V
    Typical Gate Charge @ 10V (nC) 250
    Typical Input Capacitance @ Vds (pF) 18600@25V
    Maximum Power Dissipation (mW) 1500000
    Typical Fall Time (ns) 8
    Typical Rise Time (ns) 9
    Typical Turn-Off Delay Time (ns) 72
    Typical Turn-On Delay Time (ns) 44
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Original Package SOT-227B
    Pin Count 4
    Standard Package Method SOT
    Terminal Form Screw
    Package Height 9.6(Max)
    Package Length 38.23(Max)
    Package Width 25.42(Max)
    PCB changed 4
