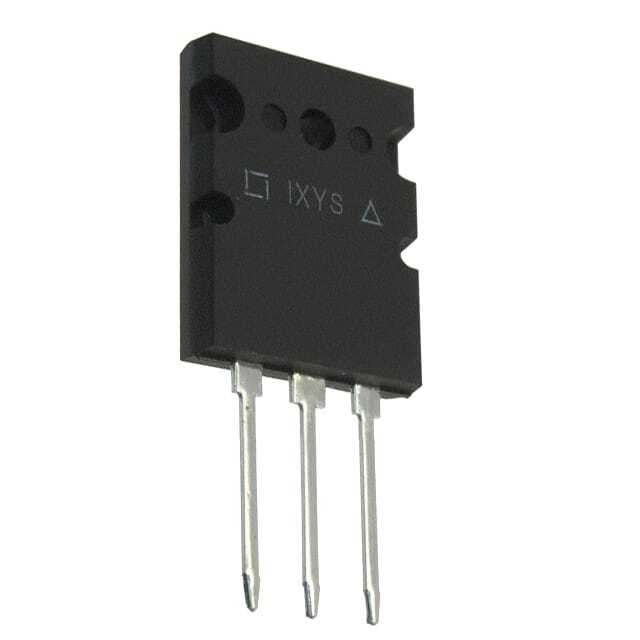

IXFK200N10P

SKU: 65888

Manufacturer: Littelfuse

Trans MOSFET N-CH 100V 200A 3-Pin(3+Tab) TO-264

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	HiperFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	200
Maximum Drain Source Resistance (mOhm)	7.5@10V
Typical Gate Charge @ Vgs (nC)	235@10V
Typical Gate Charge @ 10V (nC)	235
Typical Input Capacitance @ Vds (pF)	7600@25V
Maximum Power Dissipation (mW)	830000
Typical Fall Time (ns)	90
Typical Rise Time (ns)	35
Typical Turn-Off Delay Time (ns)	150
Typical Turn-On Delay Time (ns)	30
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-264
Pin Count	3
Terminal Form	Through Hole
Package Height	26.16(Max)
Package Length	19.96(Max)
Package Width	5.13(Max)
PCB changed	3
