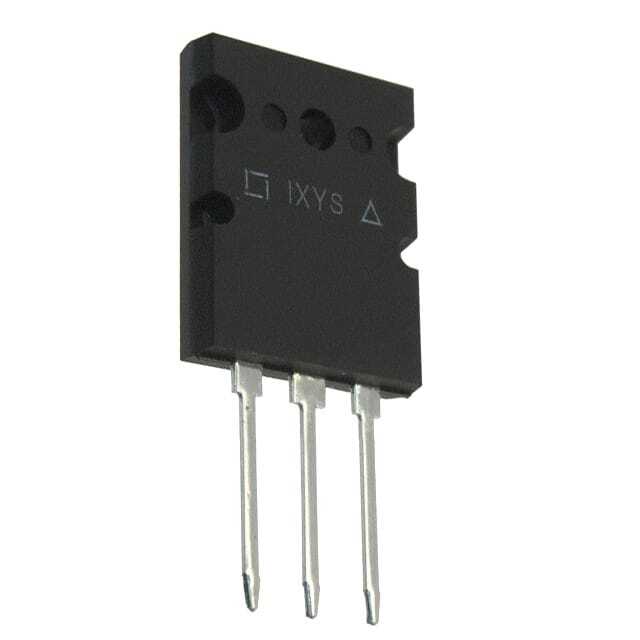

    IXFK180N25T

    SKU: 96897
    Manufacturer: Littelfuse
    Trans MOSFET N-CH 250V 180A 3-Pin(3+Tab) TO-264
    4460 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Process Technology GigaMOS
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 250
    Maximum Gate Source Voltage (V) ±20
    Maximum Continuous Drain Current (A) 180
    Maximum Drain Source Resistance (mOhm) 12.9@10V
    Typical Gate Charge @ Vgs (nC) 345@10V
    Typical Gate Charge @ 10V (nC) 345
    Typical Input Capacitance @ Vds (pF) 28000@25V
    Maximum Power Dissipation (mW) 1390000
    Typical Fall Time (ns) 28
    Typical Rise Time (ns) 33
    Typical Turn-Off Delay Time (ns) 100
    Typical Turn-On Delay Time (ns) 37
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Original Package TO-264
    Pin Count 3
    Terminal Form Through Hole
    Package Height 26.16(Max)
    Package Length 19.96(Max)
    Package Width 5.13(Max)
    PCB changed 3
