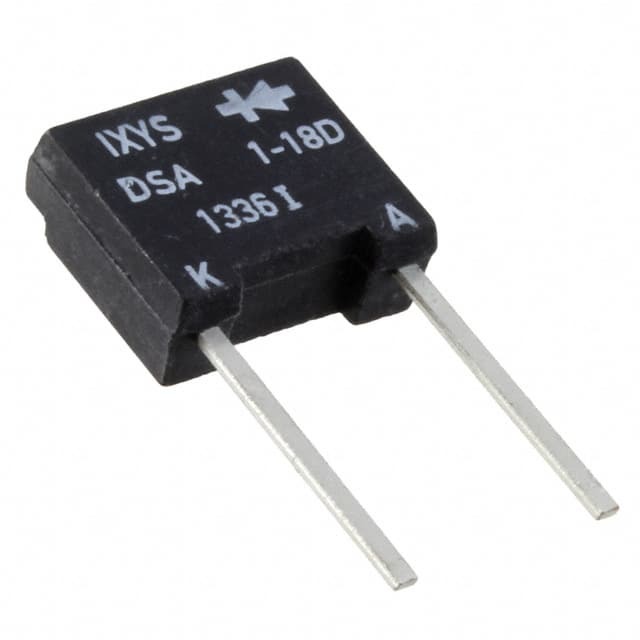

DSA1-18D

SKU: 139024

Manufacturer: Littelfuse

Rectifier Diode Avalanche Diode 1.8KV 2.3A 2-Pin DS1

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Avalanche Diode
Maximum DC Reverse Voltage (V)	1950
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1800
Maximum Continuous Forward Current (A)	2.3@Ta=45C
Peak Non-Repetitive Surge Current (A)	118
Peak Forward Voltage (V)	1.34@7A
Peak Reverse Current (uA)	700
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	DS1
Pin Count	2
Standard Package Method	DS1
Terminal Form	Through Hole
Package Height	9
Package Length	10
Package Width	4
