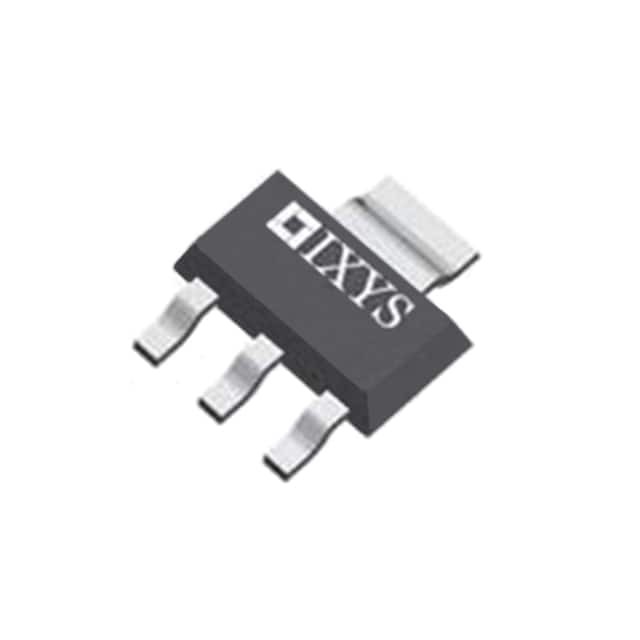

CPC3980ZTR

SKU: 72625

Manufacturer: Littelfuse

Trans MOSFET N-CH 800V 4-Pin(3+Tab) SOT-223 T/R

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	VDMOS
Configuration	Single Dual Drain
Channel Mode	Depletion
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	800
Maximum Gate Source Voltage (V)	±15
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	100000(Min)
Maximum Drain Source Resistance (mOhm)	45000@0V
Typical Input Capacitance @ Vds (pF)	115@25V
Maximum Power Dissipation (mW)	1800
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.68
Package Length	6.5
Package Width	3.51
PCB changed	3
Tab	Tab
