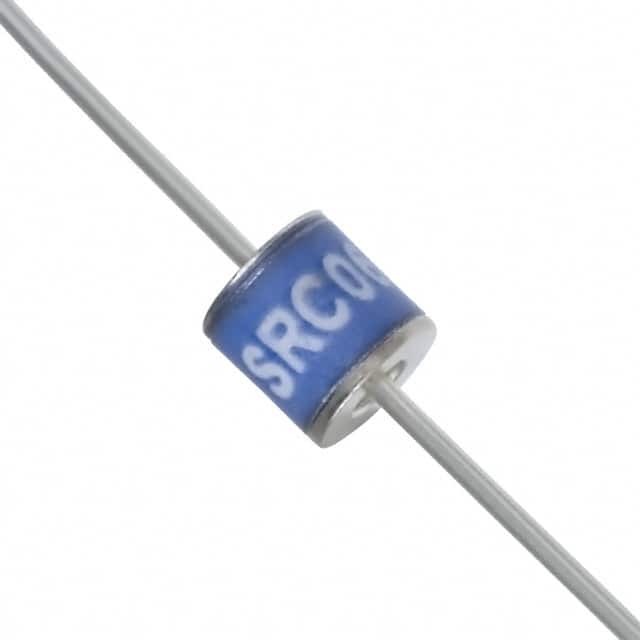

CG5350L

SKU: 32486

Manufacturer: Littelfuse

Gas Discharge Tubes 350VDC 5kADC 5AAC 1.5pF Axial Thru-Hole

2650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Maximum Impulse Sparkover Voltage @ 100V/s (V)	800
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	900
Typical DC Sparkover Voltage @ 100V/s (V)	350
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	5
Typical AC Discharge Current @ 1s @ <= 10Times (A)	5
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	1.5
Typical Impulse Life @ 10/1000us (Times)	300
Number of Electrodes	2
Terminal Form	Axial
Number of Terminals	2
Operating Temperature-Min	-40
Packing Method	Bulk
Operating Temperature-Max	90
Lead Diameter (mm)	0.8
Length (mm)	5
Depth (mm)	5
Height (mm)	5
Failsafe Protection	No
