AQ12C-01FTG

SKU: 74428

Manufacturer: Littelfuse

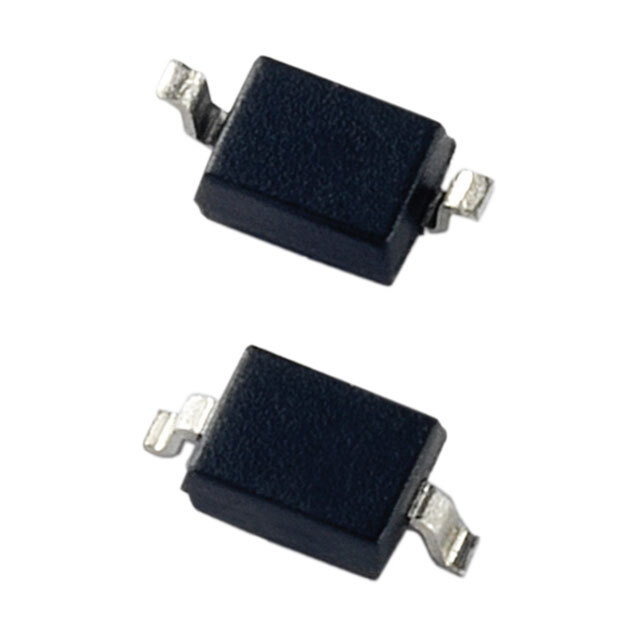

ESD Suppressor Diode TVS Bi-Dir 12V Automotive 2-Pin SOD-323 T/R

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	12
Minimum Breakdown Voltage (V)	13.3
Maximum Clamping Voltage (V)	23
Maximum Peak Pulse Current (A)	17
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	450
Capacitance Value (pF)	100
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOD-323
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	1.8(Max)
Package Width	1.4(Max)
