AQ1003-01ETG Littelfuse

AQ1003-01ETG

SKU: 136210

Manufacturer: Littelfuse

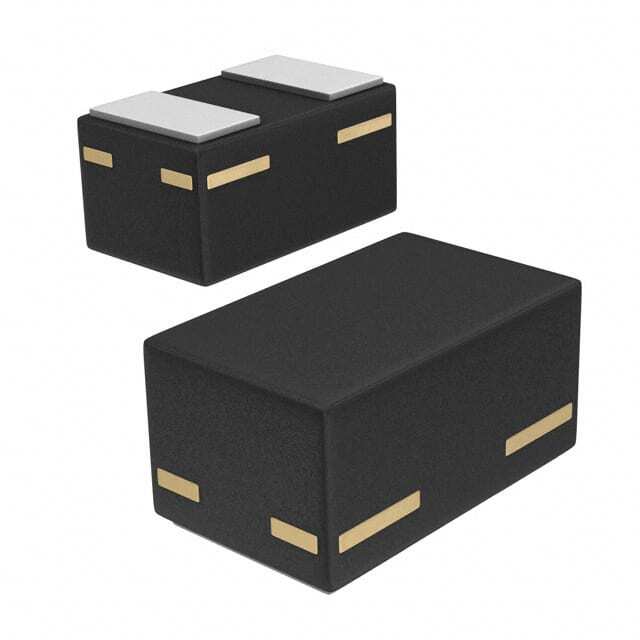

ESD Suppressor Diode TVS Uni-Dir 5V Automotive 2-Pin SOD-882 T/R

Download sample

Request Free Samples

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6
Maximum Breakdown Voltage (V)	8.5
Maximum Clamping Voltage (V)	12(Typ)
Maximum Peak Pulse Current (A)	7
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Capacitance Value (pF)	30(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOD-882
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Length	1.05(Max)
Package Width	0.65(Max)
