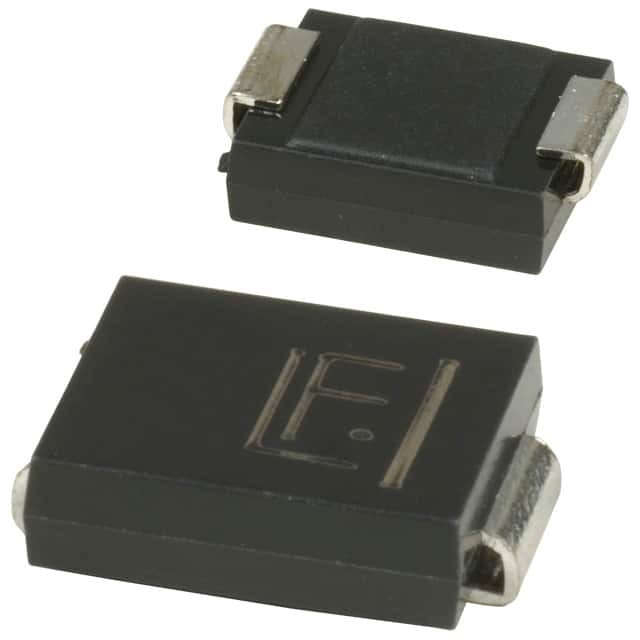

1.5SMC350A

SKU: 5797

Manufacturer: Littelfuse

Diode TVS Single Uni-Dir 300V 1.5KW 2-Pin SMC T/R

48880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	332
Maximum Clamping Voltage (V)	482
Maximum Reverse Stand-Off Voltage (V)	300
Maximum Forward Voltage (V)	3.5
Peak Forward Surge Current (A)	200
Maximum Peak Pulse Current (A)	3.2
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500
Operating Temperature-Min	-65
Operating Temperature-Max	150
Maximum Power Dissipation (mW)	6500
Product Weight (g)	0.21
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AB
Original Package	SMC
Terminal Form	Surface Mount
Package Height	2.42(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
