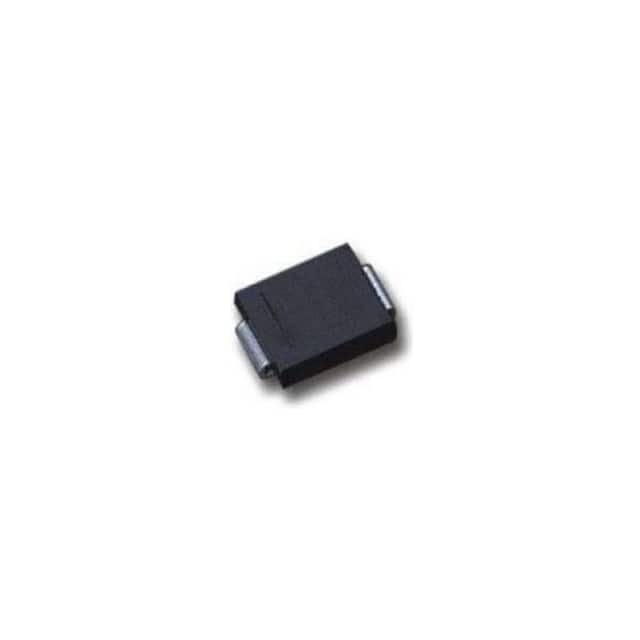

1.5SMC350CA

SKU: 6200

Manufacturer: Diotec Semiconductor AG

TVS Diode Single Bi-Dir 300V 1.5KW 2-Pin SMC T/R

3490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	332
Maximum Clamping Voltage (V)	482
Maximum Reverse Stand-Off Voltage (V)	300
Maximum Forward Voltage (V)	3
Peak Forward Surge Current (A)	100
Maximum Peak Pulse Current (A)	3.1
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500
Operating Temperature-Min	-50
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Original Package	SMC
Pin Count	2
Terminal Form	Surface Mount
Package Height	2.1
Package Length	7.5
Package Width	5.8
