0326001.MXP

SKU: 6169

Manufacturer: Littelfuse

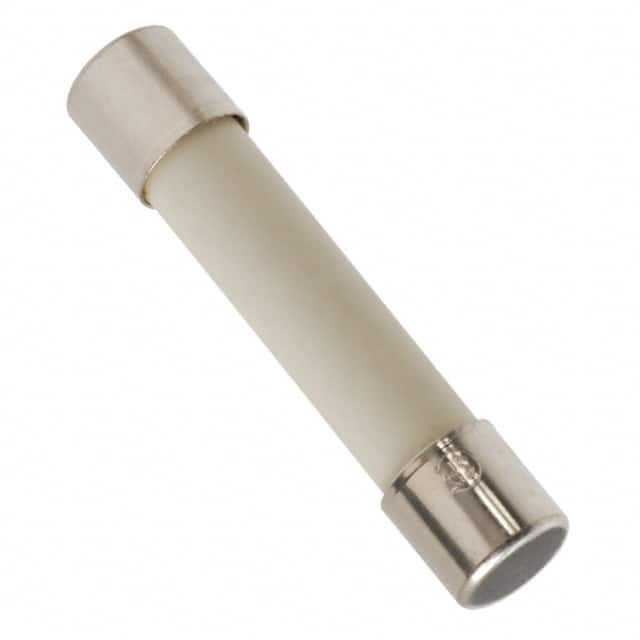

Fuse Miniature Slow Blow Acting 1A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

2850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Type	Miniature
Acting	Slow Blow
Application	Supplementary Protection
Fuse Size (mm)	6.3 X 32
Current Rating (A)	1
Voltage Rating (V)	250
Maximum AC Voltage Rating (V)	250
Maximum DC Voltage Rating (V)	125
Breaking Capacity @ Rated Voltage (A)	10000@125VAC
Typical Melting I2t (A²S)	16.3
Typical Cold Resistance (Ohm)	0.389
Terminal Form	Cartridge
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Bulk
Length (mm)	31.75
Product Diameter (mm)	6.35
Fuse Body Material	Ceramic
