0325030.MXP

SKU: 6234

Manufacturer: Littelfuse

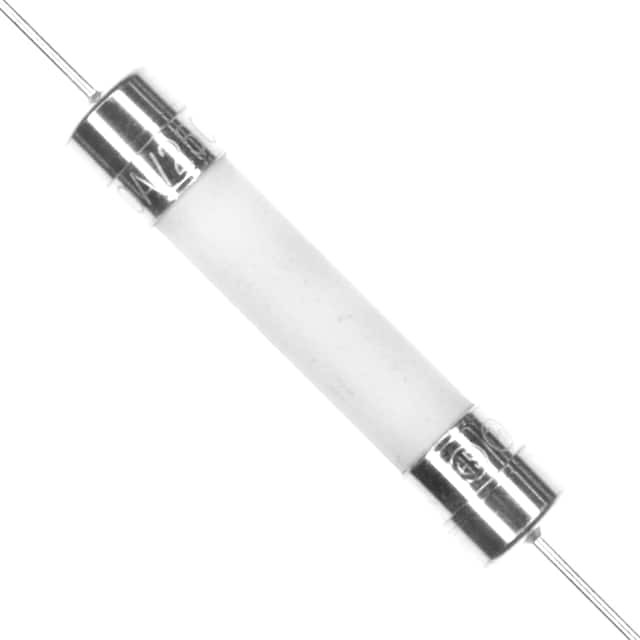

Fuse Miniature Slow Blow Acting 30A 250V Axial 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

3160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Type	Miniature
Acting	Slow Blow
Application	Utilization Equipment to Provide Individual Protection
Fuse Size (mm)	6.3 X 32
Current Rating (A)	30
Voltage Rating (V)	250
Maximum AC Voltage Rating (V)	250
Maximum DC Voltage Rating (V)	125
Typical Melting I2t (A²S)	1690
Typical Cold Resistance (Ohm)	0.0019
Terminal Form	Axial
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Bulk
Length (mm)	32.72
Product Diameter (mm)	6.99
Fuse Body Material	Ceramic
