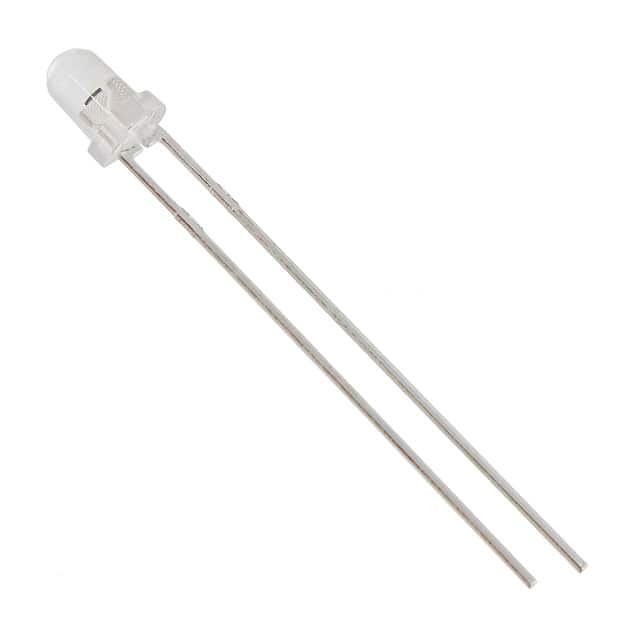

LTR-4206

SKU: 16537

Manufacturer: Lite-On Technology

Phototransistor IR Chip 2-Pin T-1

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.70.80
Automotive	No
PPAP	No
Type	IR Chip
Phototransistor Type	Phototransistor
Lens Shape Type	Domed
Lens Color	Clear
Number of Channels per Chip	1
Polarity	NPN
Viewing Orientation	Top View
Maximum Rise Time (ns)	10000(Typ)
Maximum Fall Time (ns)	10000(Typ)
Maximum Light Current (uA)	9600
Maximum Collector Current (mA)	4.5
Maximum Dark Current (nA)	100
Maximum Emitter-Collector Voltage (V)	5
Collector-Emitter Voltage-Max (V)	30
Maximum Collector-Emitter Saturation Voltage (V)	0.4
Maximum Power Dissipation (mW)	100
Fabrication Technology	NPN Transistor
Operating Temperature-Min	-40
Operating Temperature-Max	85
Standard Package Method	T-1
Original Package	T-1
Pin Count	2
Diameter	4
Terminal Form	Through Hole
Package Height	5.25
PCB changed	2
