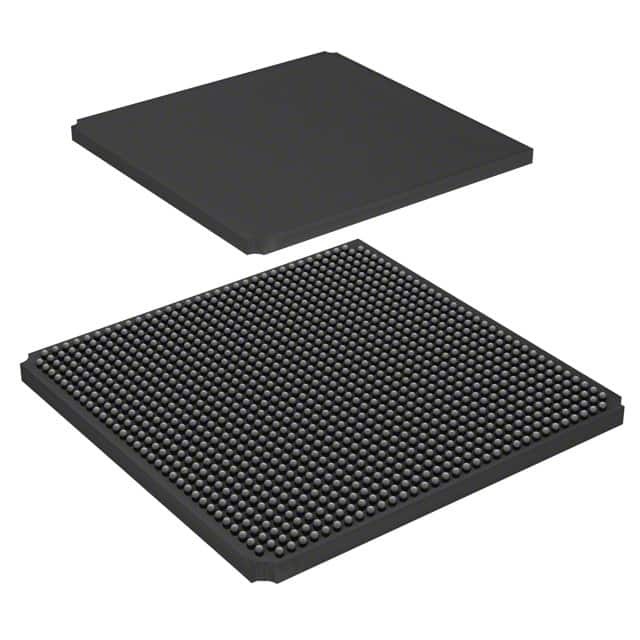

    LFSC3GA80E-5FCN1152C

    SKU: 157958
    Manufacturer: Lattice Semiconductor
    FPGA LatticeSC Family 80000 Cells 90nm Technology 1.2V 1152-Pin CFCBGA
    1620 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) 3A001.a.7.a
    Part Status Obsolete
    Automotive No
    PPAP No
    Family Name LatticeSC
    Process Technology 90nm
    User I/Os 660
    Number of I/O Banks 7
    Operating Supply Voltage (V) 1.2
    Shift Registers Utilize Memory
    Logic Elements 80000
    Program Memory Type SRAM
    Embedded Memory (Kbit) 5544
    Total Number of Block RAM 308
    Maximum Distributed RAM Bits 1310720
    SERDES Channels 16
    Device Logic Units 80000
    Number of Global Clocks 8
    Device Number of DLLs/PLLs 12
    Programmability No
    Reprogrammability Support No
    In-System Programmability No
    Speed Grade 5
    Maximum Differential I/O Pairs 330
    Maximum I/O Performance 2Gbps
    Operating Supply Voltage-Min (V) 0.95
    Operating Supply Voltage-Max (V) 1.26
    I/O Voltage (V) 1.5
    Operating Temperature-Min 0
    Operating Temperature-Max 85
    Supplier Temperature Grade Commercial
    Tradename LatticeSC
    Original Package CFCBGA
    Pin Count 1152
    Standard Package Method BGA
    Terminal Form Surface Mount
    Package Height 4.1
    Package Length 35
    Package Width 35
