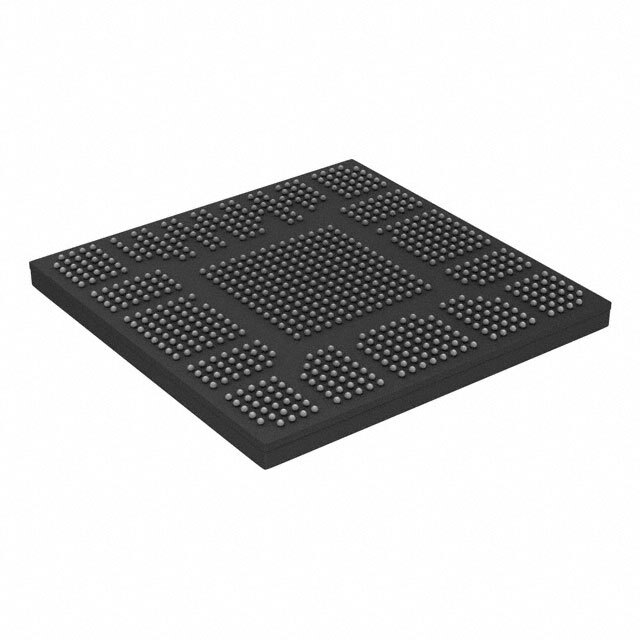

LFE5U-85F-6BG756C

SKU: 40541

Manufacturer: Lattice Semiconductor

FPGA LatticeECP5 Family 84000 Cells 40nm Technology 1.1V 756-Pin CABGA Tray

2070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.d
Part Status	Active
Automotive	No
PPAP	No
Family Name	LatticeECP5
Process Technology	40nm
User I/Os	365
Number of I/O Banks	8
Operating Supply Voltage (V)	1.1
Shift Registers	Utilize LUT
Logic Elements	84000
Number of Multipliers	156 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	3744
Total Number of Block RAM	208
Maximum Distributed RAM Bits	685056
Device Logic Units	84000
Device Number of DLLs/PLLs	4
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
In-System Programmability	Yes
Speed Grade	6
Maximum I/O Performance	3.2Gbps
Operating Supply Voltage-Min (V)	1.045
Operating Supply Voltage-Max (V)	1.155
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	LatticeEC
Original Package	CABGA
Pin Count	756
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.8(Min)
Package Length	27
Package Width	27
PCB changed	756
