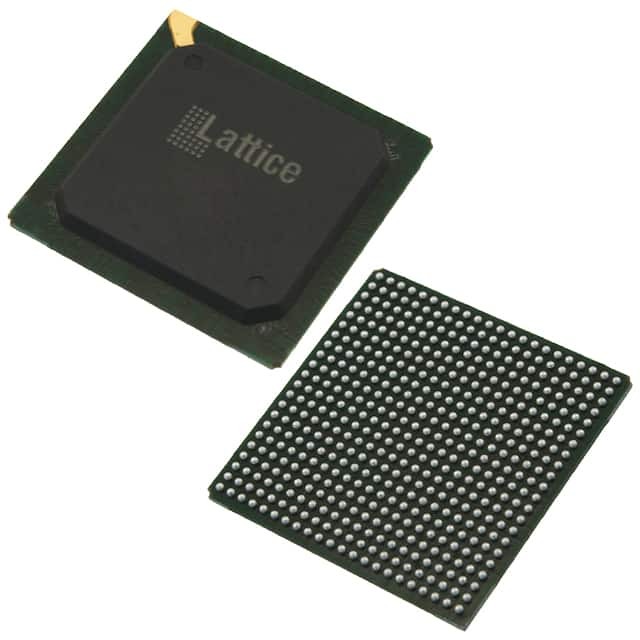

LC5768VG-75F484C

SKU: 143723

Manufacturer: Lattice Semiconductor

CPLD ispMACH 5000VG Family 768 Macro Cells 117MHz 3.3V 484-Pin FBGA

3310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	ispMACH 5000VG
Program Memory Type	ROMless
Number of Logic Blocks/Elements	24
Number of I/O Banks	4
Number of Macro Cells	768
Product Terms	160
Data Gate	No
Maximum Number of User I/Os	304
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	181
Maximum Clock to Output Delay (ns)	5
Maximum Propagation Delay Time (ns)	7.5
Speed Grade	75
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	3.3
Tolerant Configuration Interface Voltage (V)	5
Maximum Operating Current (mA)	380(Typ)
Operating Temperature-Min	0
Operating Temperature-Max	90
Supplier Temperature Grade	Commercial
Tradename	ispMACH
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.65
Package Length	23
Package Width	23
PCB changed	484
