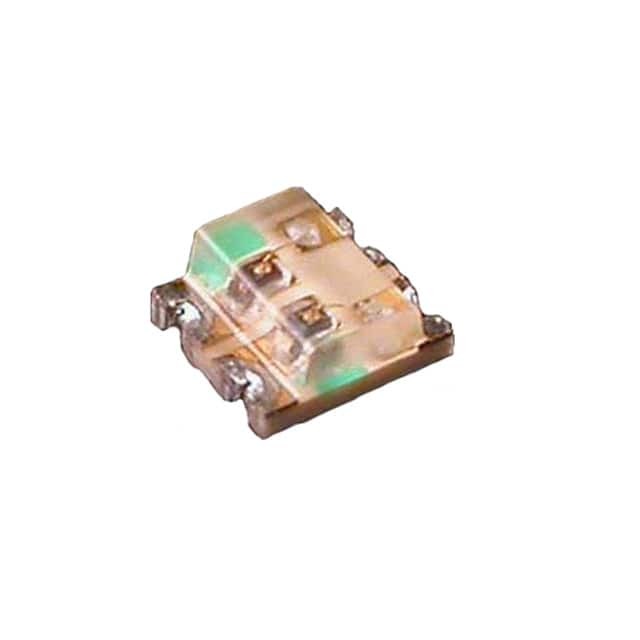

APTB1615ESGC-F01

SKU: 46238

Manufacturer: Kingbright Company, LLC

LED Bi-Color Green/Red 565nm/627nm 4-Pin Chip LED T/R

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Red
Number of LEDs	2
LED Body Material	GaP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.2x1.5x0.5
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	12mcd
Dominant Wavelength (nm)	568/617
Peak Wavelength (nm)	565/627
Viewing Angle (°)	150
Maximum Forward Current (mA)	25/30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	62.5/75
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green/Hi-Eff. Red
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	Chip LED
Pin Count	4
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Height	0.7
Package Length	1.5
Package Width	1.6
PCB changed	4
