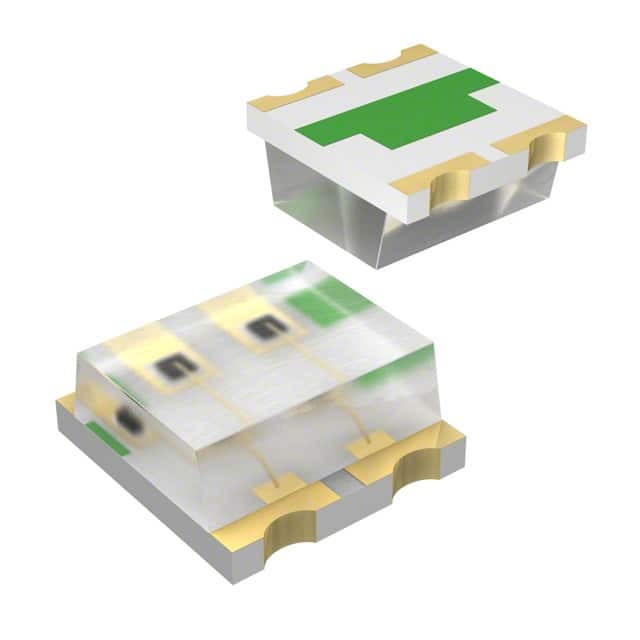

APTB1612SURKCGKC-F01

SKU: 46237

Manufacturer: Kingbright Company, LLC

LED Bi-Color Green/Red 574nm/645nm 4-Pin Chip LED T/R

1490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Red
Number of LEDs	2
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.2x1.25x0.4
Lens Appearance	Water Clear
Mounting Orientation	Top Mount
Intensity	50mcd
Dominant Wavelength (nm)	570/630
Peak Wavelength (nm)	574/645
Viewing Angle (°)	150
Maximum Forward Current (mA)	30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	5(Max)
Typical Forward Voltage (V)	2.1/1.95
Maximum Junction Temperature (°C)	115
Internal Protection	No
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Capacitance Value (pF)	115
Supplier Color	Green/Hyper Red
Special Color	Green/Hyper Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Chip LED
Pin Count	4
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Height	0.65
Package Length	1.25
Package Width	1.6
PCB changed	4
