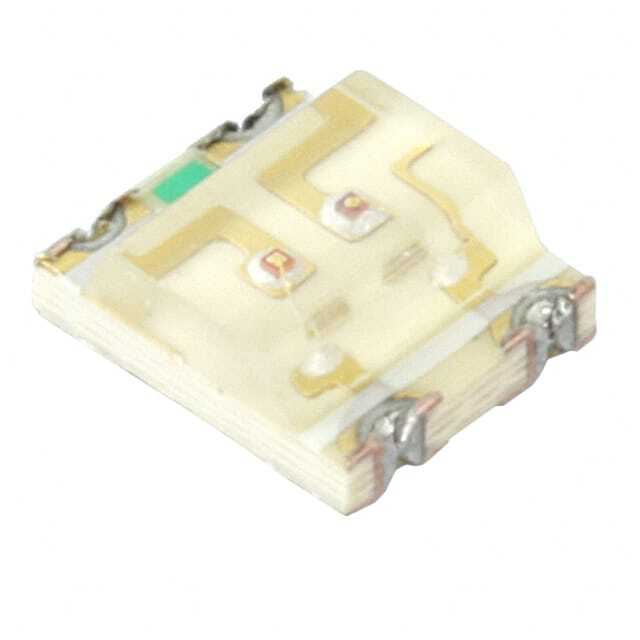

APB3025YSGC-F01

SKU: 39115

Manufacturer: Kingbright Company, LLC

LED Low-Power Bi-Color Yellow 565nm/590nm 2.2V/2.1V 4-Pin SMD T/R

3520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Yellow
Number of LEDs	1
LED Body Material	GaP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	2x2.5x0.6
Lens Appearance	Water Clear
Mounting Orientation	Top Mount
Intensity	15mcd
Dominant Wavelength (nm)	568/588
Peak Wavelength (nm)	565/590
Viewing Angle (°)	160
Maximum Forward Current (mA)	25/30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	5(Max)
Typical Forward Voltage (V)	2.2/2.1
Maximum Junction Temperature (°C)	110
Internal Protection	No
Maximum Power Dissipation (mW)	62.5/75
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Capacitance Value (pF)	15/20
Supplier Color	Yellow
Special Color	Yellow
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	4
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	2.5
Package Width	3
PCB changed	4
