APA3010SGC-GX

SKU: 39113

Manufacturer: Kingbright Company, LLC

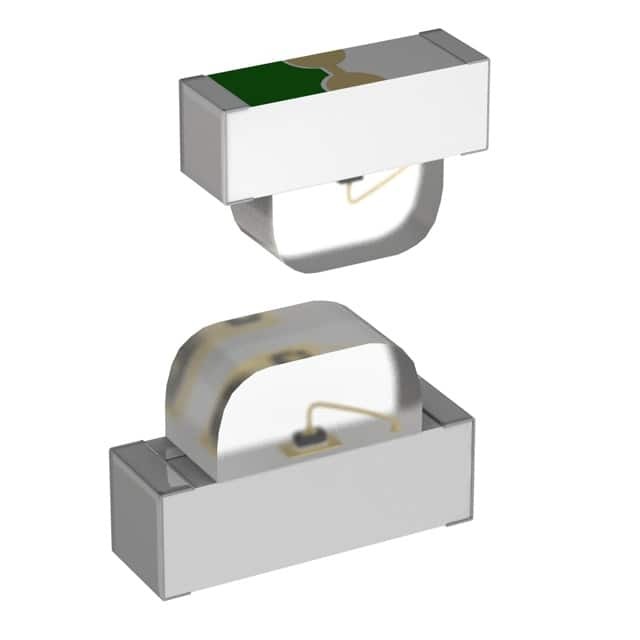

LED Uni-Color Green 565nm 2-Pin Chip LED T/R

2920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
LED Body Material	GaP
Lens Shape Type	Circular
Lens Dimensions (mm)	2x2x1
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Right Angle
Intensity	12mcd
Dominant Wavelength (nm)	568
Peak Wavelength (nm)	565
Viewing Angle (°)	120
Maximum Forward Current (mA)	25
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	62.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	Chip LED
Pin Count	2
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Height	1
Package Length	3
Package Width	2
PCB changed	2
