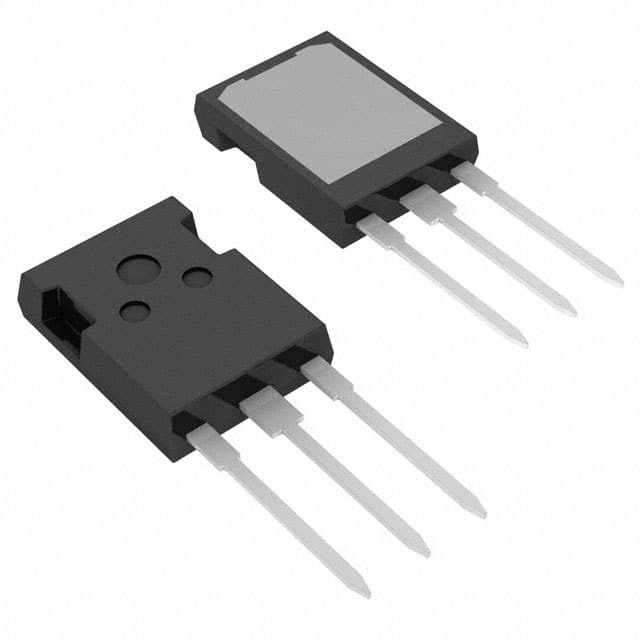

IXYX100N120C3

SKU: 125240

Manufacturer: IXYS

Trans IGBT Chip N-CH 1200V 188A 1150000mW 3-Pin(3+Tab) PLUS 247

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Technology	XPT
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	1200
Typical Collector Emitter Saturation Voltage (V)	2.9
Maximum Continuous Collector Current (A)	188
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	1150000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	PLUS 247
Pin Count	3
Terminal Form	Through Hole
Package Height	21.34(Max)
Package Length	16.13(Max)
Package Width	5.21(Max)
PCB changed	3
