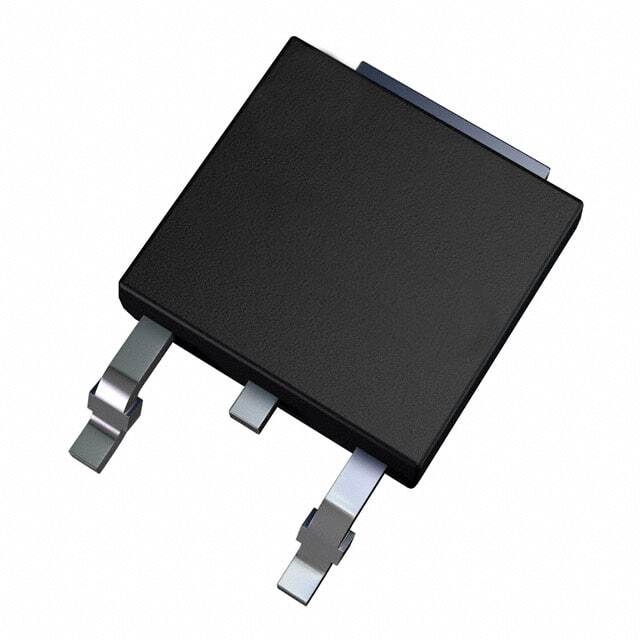

    IRFR5305PBF

    SKU: 132328
    Manufacturer: International Rectifier
    Trans MOSFET P-CH Si 55V 31A 3-Pin(2+Tab) DPAK Tube
    3860 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Body Material Si
    Configuration Single
    Process Technology HEXFET
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 55
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 4
    Operating Junction Temperature (°C) -55 to 175
    Maximum Continuous Drain Current (A) 31
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 25
    Maximum Drain Source Resistance (mOhm) 65@10V
    Typical Gate Charge @ Vgs (nC) 63(Max)@10V
    Typical Gate Charge @ 10V (nC) 63(Max)
    Typical Gate to Drain Charge (nC) 29(Max)
    Typical Gate to Source Charge (nC) 13(Max)
    Typical Reverse Recovery Charge (nC) 170
    Typical Input Capacitance @ Vds (pF) 1200@25V
    Typical Reverse Transfer Capacitance @ Vds (pF) 250@25V
    Minimum Gate Threshold Voltage (V) 2
    Typical Output Capacitance (pF) 520
    Maximum Power Dissipation (mW) 110000
    Typical Fall Time (ns) 63
    Typical Rise Time (ns) 66
    Typical Turn-Off Delay Time (ns) 39
    Typical Turn-On Delay Time (ns) 14
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Packing Method Tube
    Maximum Pulsed Drain Current @ TC=25°C (A) 110
    Maximum Junction Ambient Thermal Resistance on PCB (°C/W) 50
    Typical Gate Plateau Voltage (V) 5.9
    Typical Reverse Recovery Time (ns) 71
    Maximum Diode Forward Voltage (V) 1.3
    Maximum Positive Gate Source Voltage (V) 20
    Pin Count 3
    Standard Package Method TO-252
    Original Package DPAK
    Terminal Form Surface Mount
    Package Height 2.39(Max)
    Package Length 6.73(Max)
    Package Width 6.22(Max)
    PCB changed 2
