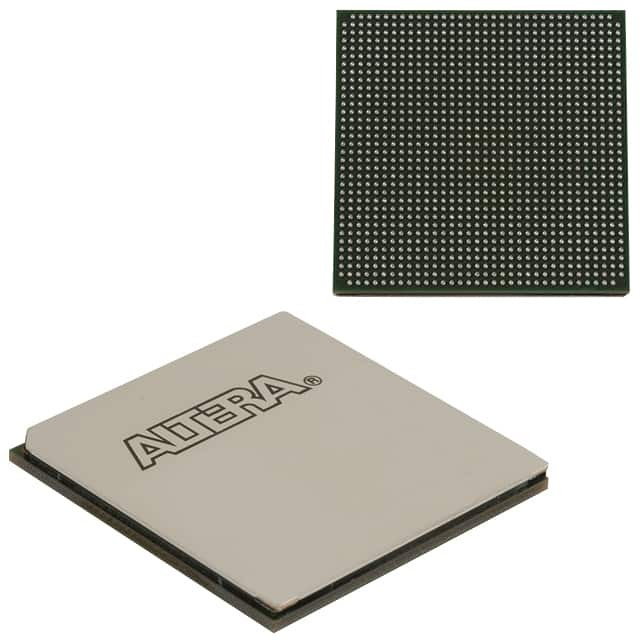

EP4SGX360FF35C3N

SKU: 30356

Manufacturer: Intel

FPGA Stratix® IV GX Family 353600 Cells 40nm Technology 0.9V 1152-Pin FC-FBGA

4010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® IV GX
Process Technology	40nm
User I/Os	560
Number of I/O Banks	24
Number of Registers	282880
Shift Registers	Utilize Memory
Operating Supply Voltage (V)	0.9
Logic Elements	353600
Number of Multipliers	1040 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	22564
Total Number of Block RAM	48+1248
EMACs	1
IP Core	Viterbi Compiler, Low-Speed/Hybrid Serial Decoder
Provider Name	Altera/CAST, Inc/Bitec/Eureka Technology Inc/El Camino GmbH
SERDES Channels	44
Device Logic Units	353600
Number of Global Clocks	16
Device Number of DLLs/PLLs	6
Transceiver Channels	16
Transceiver Speed (Gbps)	8.5
Dedicated DSP	130
PCIe	2
Programmability	Yes
Reprogrammability Support	No
Copy Protection	Yes
In-System Programmability	No
Speed Grade	3
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
External Memory Interface	DDR2 SDRAM
Operating Supply Voltage-Min (V)	0.87
Operating Supply Voltage-Max (V)	0.93
I/O Voltage (V)	3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	1152
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.7
Package Length	35
Package Width	35
PCB changed	1152
