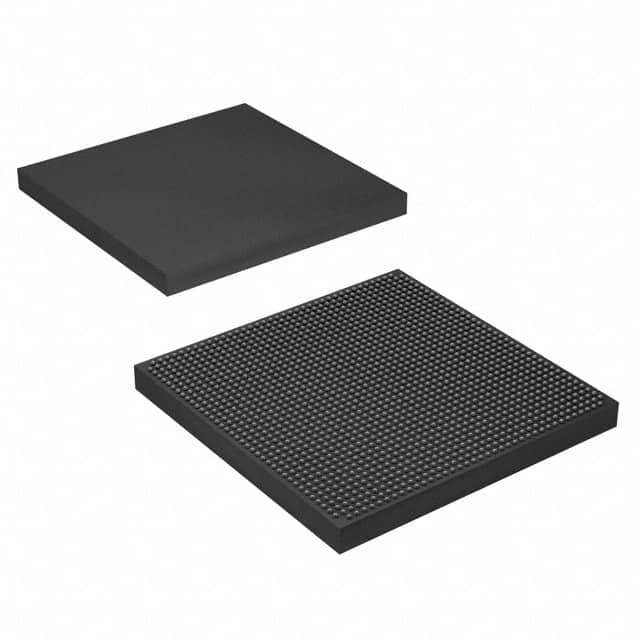

EP4SGX230KF40I4

SKU: 30354

Manufacturer: Intel

FPGA Stratix® IV GX Family 228000 Cells 40nm Technology 0.9V 1517-Pin FC-FBGA

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® IV GX
Process Technology	40nm
User I/Os	736
Number of I/O Banks	24
Number of Registers	182400
Shift Registers	Utilize Memory
Operating Supply Voltage (V)	0.9
Logic Elements	228000
Number of Multipliers	1288 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	17133
Total Number of Block RAM	22+1235
EMACs	1
IP Core	SD/MMC SPI
Provider Name	Altera/CAST, Inc/Bitec/Eureka Technology Inc/El Camino GmbH
SERDES Channels	88
Device Logic Units	228000
Number of Global Clocks	16
Device Number of DLLs/PLLs	8
Transceiver Channels	36
Transceiver Speed (Gbps)	8.5
Dedicated DSP	161
PCIe	2
Programmability	Yes
Reprogrammability Support	No
Copy Protection	Yes
In-System Programmability	No
Speed Grade	4
Differential I/O Standards	LVDS
Single-Ended I/O Standards	HSTL
External Memory Interface	DDR2 SDRAM
Operating Supply Voltage-Min (V)	0.87
Operating Supply Voltage-Max (V)	0.93
I/O Voltage (V)	1.2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	1517
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.8
Package Length	40
Package Width	40
PCB changed	1517
