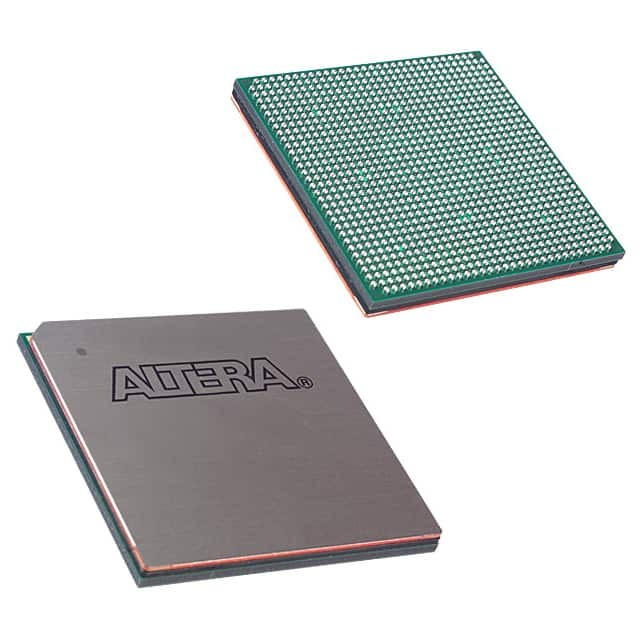

EP1SGX25FF1020C6

SKU: 93880

Manufacturer: Intel

FPGA Stratix® GX Family 25660 Cells 5000MHz 130nm Technology 1.5V 1020-Pin FC-FBGA

1740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® GX
Process Technology	130nm
User I/Os	607
Number of I/O Banks	6
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	25660
Number of Multipliers	80 (9x9)
Program Memory Type	SRAM
Embedded Memory (Kbit)	1899
Total Number of Block RAM	2+138+224
IP Core	Viterbi Compiler, Low-Speed/Hybrid Serial Decoder
Provider Name	Altera/Mobiveil, Inc/MorethanIP/Northwest Logic, Inc
Device Logic Units	25660
Number of Global Clocks	16
Device Number of DLLs/PLLs	4
Transceiver Channels	16
Transceiver Speed (Gbps)	3.1875
Dedicated DSP	10
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	5000
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVCMOS
External Memory Interface	ZBT SRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	2.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	1020
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	33
Package Width	33
PCB changed	1020
