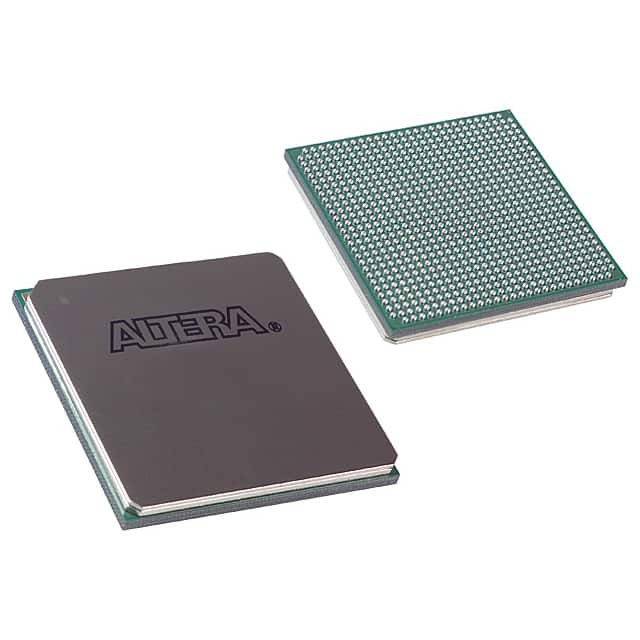

EP1S20F780I6

SKU: 86889

Manufacturer: Intel

FPGA Stratix® Family 18460 Cells 450.05MHz 130nm Technology 1.5V 780-Pin FC-FBGA

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix®
Process Technology	130nm
User I/Os	586
Number of I/O Banks	8
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	18460
Number of Multipliers	80 (9x9)
Program Memory Type	SRAM
Embedded Memory (Kbit)	1630.1
Total Number of Block RAM	2+82+194
IP Core	32/64-bit PCI-X bus Master/Target interface Core, 66/100/133Mhz
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI/Digital Core Design/PLDA
SERDES Channels	30
Device Logic Units	18460
Number of Global Clocks	16
Device Number of DLLs/PLLs	6
Dedicated DSP	10
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	450.05
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	840Mbps
External Memory Interface	ZBT SRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.8
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	780
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	29
Package Width	29
PCB changed	780
