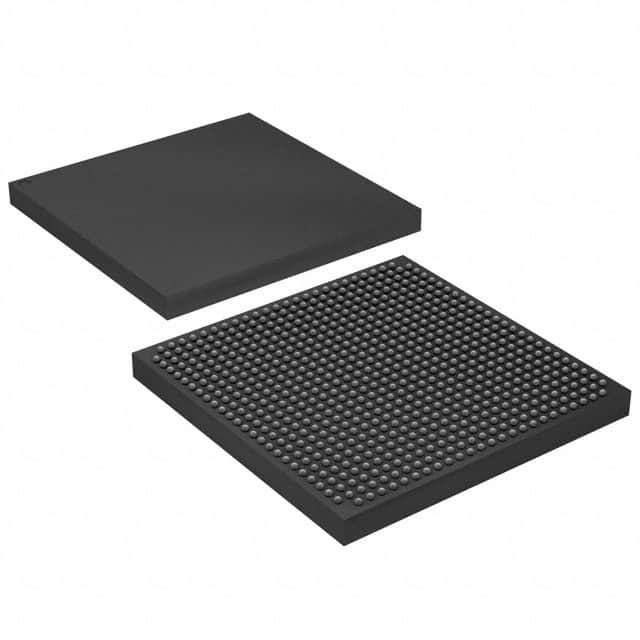

EP1S10F672C6

SKU: 37443

Manufacturer: Intel

FPGA Stratix® Family 10570 Cells 450.05MHz 130nm Technology 1.5V 672-Pin FBGA

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix®
Process Technology	130nm
User I/Os	345
Number of I/O Banks	8
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	10570
Number of Multipliers	48 (9x9)
Program Memory Type	SRAM
Embedded Memory (Kbit)	898.9
Total Number of Block RAM	1+60+94
IP Core	Video LVDS SerDes Transmitter / Receiver
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI/Digital Core Design/PLDA
SERDES Channels	30
Device Logic Units	10570
Number of Global Clocks	16
Device Number of DLLs/PLLs	6
Dedicated DSP	6
Programmability	Yes
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	450
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	840Mbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	FBGA
Pin Count	672
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.2(Max)
Package Length	27
Package Width	27
PCB changed	672
