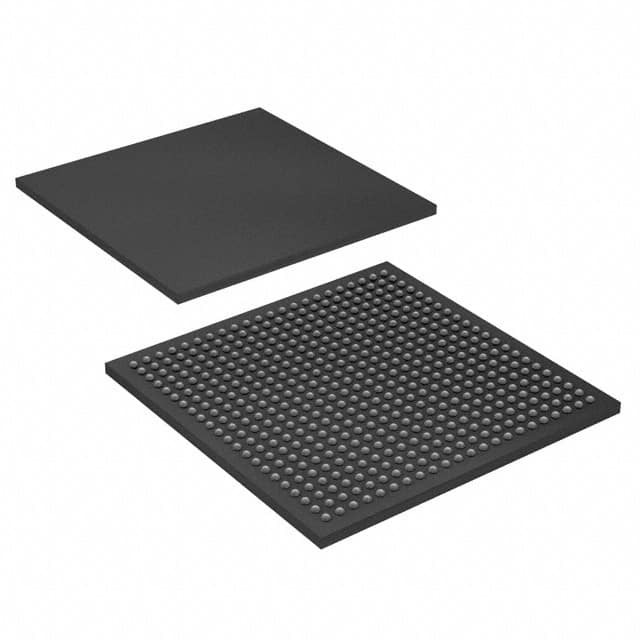

EP1S10F484I6

SKU: 37450

Manufacturer: Intel

FPGA Stratix® Family 10570 Cells 450.05MHz 130nm Technology 1.5V 484-Pin FC-FBGA

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix®
Process Technology	130nm
User I/Os	335
Number of I/O Banks	8
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	10570
Number of Multipliers	48 (9x9)
Program Memory Type	SRAM
Embedded Memory (Kbit)	898.9
Total Number of Block RAM	1+60+94
IP Core	Video LVDS SerDes Transmitter / Receiver
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI/Digital Core Design/PLDA
SERDES Channels	30
Device Logic Units	10570
Number of Global Clocks	16
Device Number of DLLs/PLLs	6
Dedicated DSP	6
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	450.05
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	840Mbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	23
Package Width	23
PCB changed	484
