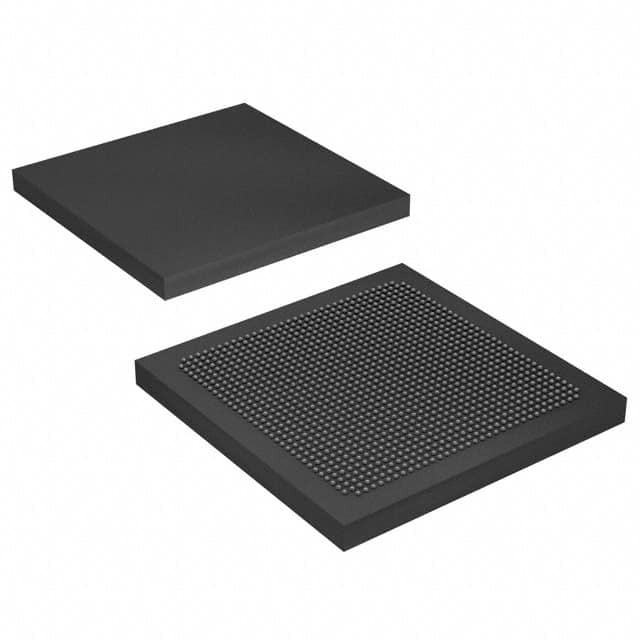

EP1AGX90EF1152C6

SKU: 72756

Manufacturer: Intel

FPGA Arria® GX Family 90220 Cells 90nm Technology 1.2V 1152-Pin FC-FBGA

3390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Arria® GX
Process Technology	90nm
User I/Os	538
Number of I/O Banks	6
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	90220
Number of Multipliers	176 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	4372.9
Total Number of Block RAM	4+400+478
IP Core	Hashing IP Core (BA413)
Provider Name	Microtronix Inc/Mobiveil, Inc/CAST, Inc/Barco Silex/MorethanIP
Device Logic Units	90220
Number of Global Clocks	16
Device Number of DLLs/PLLs	8
Transceiver Channels	12
Transceiver Speed (Gbps)	2.5
Dedicated DSP	44
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	2.5Gbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Arria
Original Package	FC-FBGA
Pin Count	1152
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	35
Package Width	35
PCB changed	1152
