IS64LPS25636A-166TQLA3

SKU: 23366

Manufacturer: Integrated Silicon Solution Inc

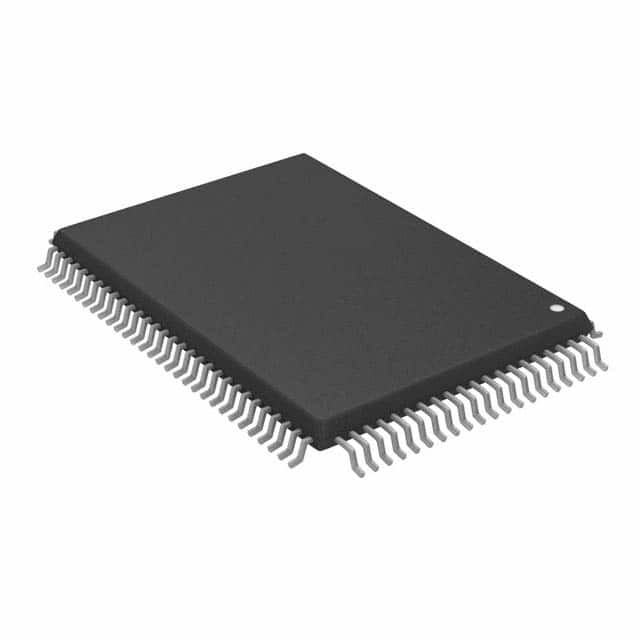

SRAM Chip Sync Quad 3.3V 9M-bit 256K x 36 3.5ns Automotive 100-Pin TQFP

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.2.a
Part Status	Active
HTS	8542.32.00.41
Automotive	Yes
PPAP	Yes
Chip Density (bit)	9M
Number of Words	256K
Number of Bits/Word (bit)	36
Architecture	Pipelined
Data Rate Architecture	SDR
Address Bus Width (bit)	18
Number of Ports	4
Timing Type	Synchronous
Max. Access Time (ns)	3.5
Maximum Clock Rate (MHz)	166
Process Technology	CMOS
Operating Supply Voltage-Min (V)	3.135
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.465
Operating Current (mA)	300
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Original Package	TQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	20.1(Max)
Package Width	14.1(Max)
PCB changed	100
