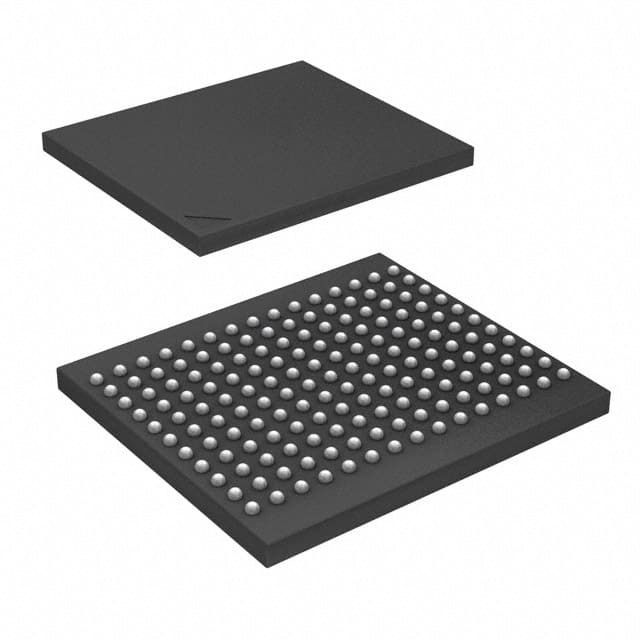

IS64LF12836EC-7.5B3LA3

SKU: 146474

Manufacturer: Integrated Silicon Solution Inc

SRAM Chip Sync Quad 3.3V 4M-bit 128K x 36 7.5ns Automotive 165-Pin BGA

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Chip Density (bit)	4M
Number of Words	128K
Number of Bits/Word (bit)	36
Architecture	Flow-Through
Data Rate Architecture	SDR
Address Bus Width (bit)	17
Number of Ports	4
Timing Type	Synchronous
Max. Access Time (ns)	7.5
Maximum Clock Rate (MHz)	117
Operating Supply Voltage-Min (V)	3.135
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.465
Operating Current (mA)	175
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Original Package	BGA
Pin Count	165
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.79
Package Length	15
Package Width	13
PCB changed	165
