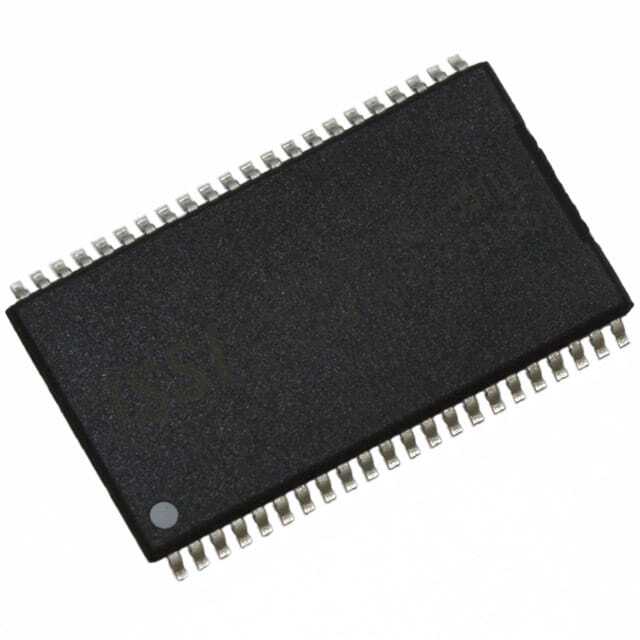

IS61LV6416-10T

SKU: 47508

Manufacturer: Integrated Silicon Solution Inc

SRAM Chip Async Single 3.3V 1M-bit 64K x 16 10ns 44-Pin TSOP-II

3360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991.B.2.B
Part Status	Obsolete
HTS	8542.32.00.41
Automotive	No
PPAP	No
Chip Density (bit)	1M
Number of Words	64K
Number of Bits/Word (bit)	16
Data Rate Architecture	SDR
Address Bus Width (bit)	16
Number of Ports	1
Timing Type	Asynchronous
Max. Access Time (ns)	10
Process Technology	CMOS
Operating Supply Voltage-Min (V)	3.135
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.63
Operating Current (mA)	120
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Original Package	TSOP-II
Pin Count	44
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	18.52(Max)
Package Width	10.29(Max)
PCB changed	44
