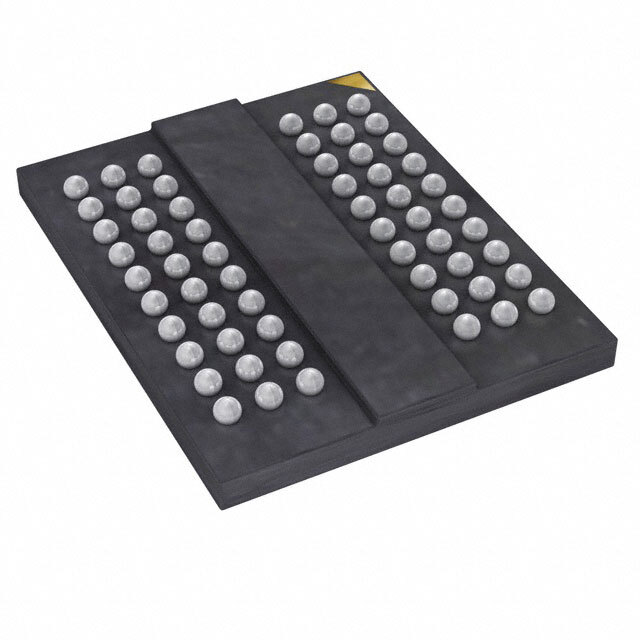

IS43LR16640A-6BLI-TR

SKU: 51822

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip Mobile-DDR SDRAM 1Gbit 64Mx16 1.8V 60-Pin TW-BGA T/R

1120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.32
Automotive	No
PPAP	No
DRAM Type	Mobile-DDR SDRAM
Chip Density (bit)	1G
Organization	64Mx16
Number of Internal Banks	4
Number of Words per Bank	16M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	166
Maximum Access Time (ns)	8
Address Bus Width (bit)	16
Interface Type	LVCMOS
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Operating Current (mA)	85
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Number of I/O Lines (bit)	16
Packing Method	Tape and Reel
Original Package	TW-BGA
Pin Count	60
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	10
Package Width	8
PCB changed	60
