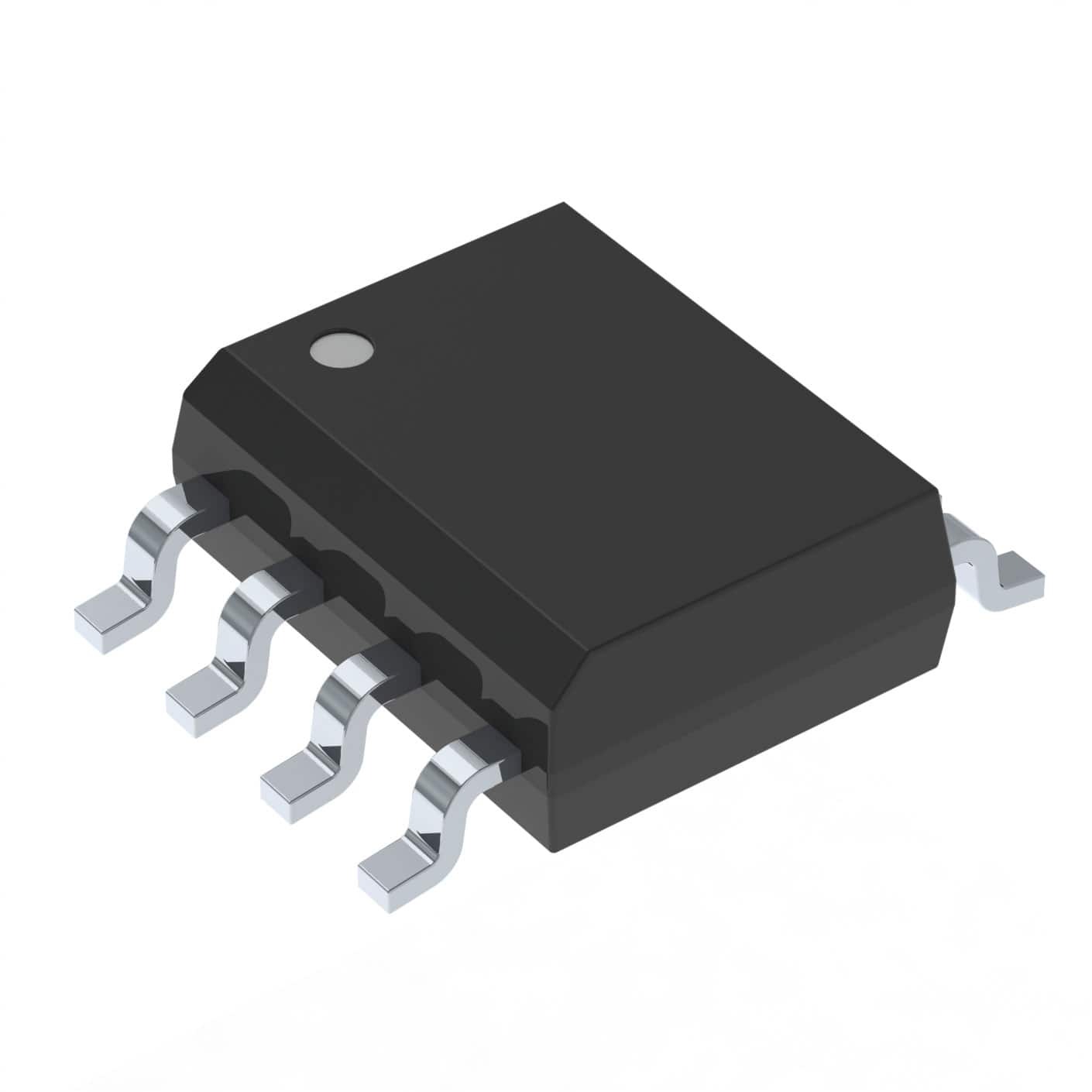

TLE4263-2ES

SKU: 115982

Manufacturer: Infineon Technologies AG

LDO Regulator Pos 5V 0.18A Automotive 8-Pin DSO EP T/R

9530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.18
Minimum Input Voltage (V)	5.5
Maximum Input Voltage (V)	45
Maximum Dropout Voltage @ Current (V)	0.6@150mA
Line Regulation	25mV
Load Regulation	25mV
Junction to Ambient	153K/W(Typ)
Junction to Case	10K/W(Typ)
Special Features	Reverse Polarity Protection
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DSO EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.45
Package Length	4.9
Package Width	3.9
PCB changed	8
