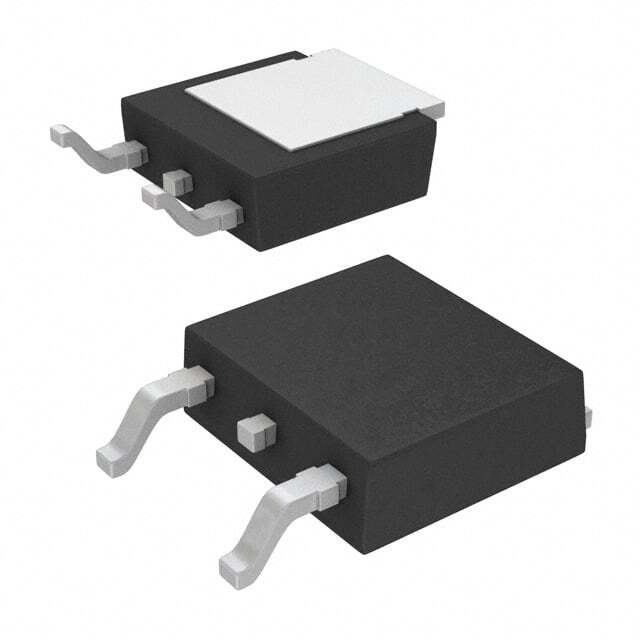

SPD18P06P

SKU: 92443

Manufacturer: Infineon Technologies AG

Trans MOSFET P-CH 60V 18.6A 3-Pin(2+Tab) DPAK

6590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	SIPMOS
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	18.6
Maximum Drain Source Resistance (mOhm)	130@10V
Typical Gate Charge @ Vgs (nC)	22@10V
Typical Gate Charge @ 10V (nC)	22
Typical Input Capacitance @ Vds (pF)	690@25V
Maximum Power Dissipation (mW)	80000
Typical Fall Time (ns)	11
Typical Rise Time (ns)	5.8
Typical Turn-Off Delay Time (ns)	24.5
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.3
Package Length	6.5
Package Width	6.22
PCB changed	2
