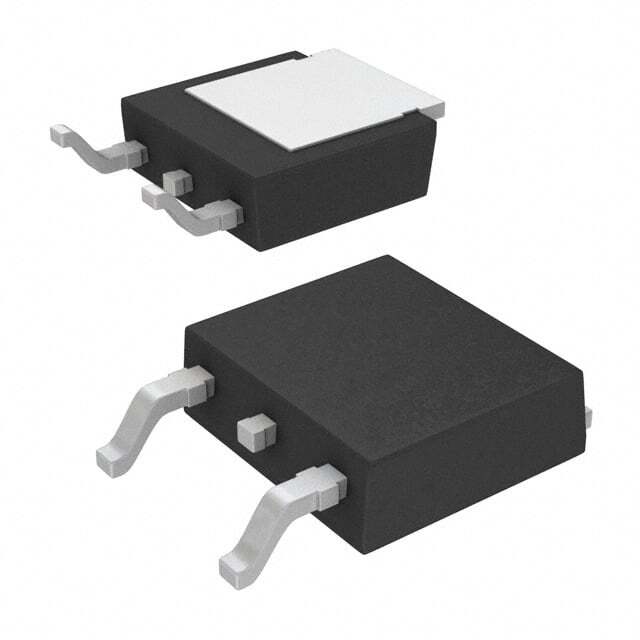

SPD08P06P

SKU: 35966

Manufacturer: Infineon Technologies AG

Trans MOSFET P-CH 60V 8.83A 3-Pin(2+Tab) DPAK

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	SIPMOS
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	8.83
Maximum Drain Source Resistance (mOhm)	300@6.2V
Typical Gate Charge @ Vgs (nC)	10@10V
Typical Gate Charge @ 10V (nC)	10
Typical Input Capacitance @ Vds (pF)	335@25V
Maximum Power Dissipation (mW)	42000
Typical Fall Time (ns)	14
Typical Rise Time (ns)	46
Typical Turn-Off Delay Time (ns)	48
Typical Turn-On Delay Time (ns)	16
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.3
Package Length	6.5
Package Width	6.22
PCB changed	2
