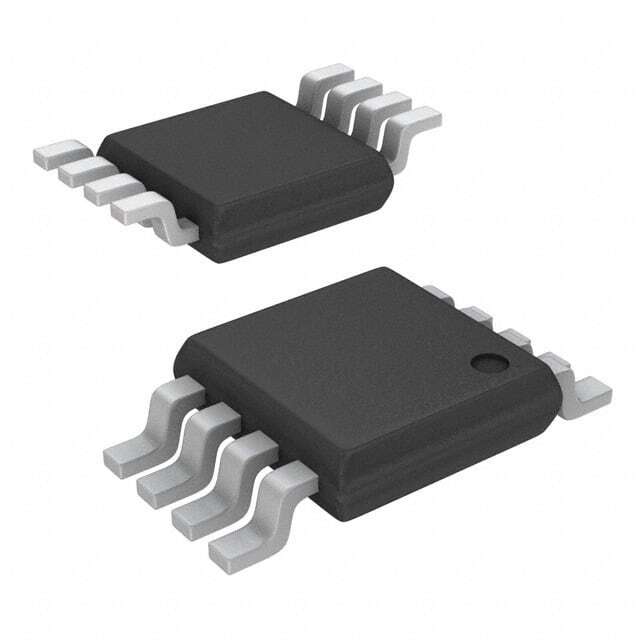

IRF7501TR

SKU: 26077

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH Si 20V 2.4A 8-Pin Micro T/R

840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Dual Dual Drain
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	0.7(Min)
Maximum Continuous Drain Current (A)	2.4
Maximum Drain Source Resistance (mOhm)	135@4.5V
Typical Gate Charge @ Vgs (nC)	5.3@4.5V
Typical Gate to Drain Charge (nC)	2.2
Typical Gate to Source Charge (nC)	0.84
Typical Reverse Recovery Charge (nC)	37
Typical Input Capacitance @ Vds (pF)	260@15V
Typical Output Capacitance (pF)	130
Maximum Power Dissipation (mW)	1250
Typical Fall Time (ns)	16
Typical Rise Time (ns)	24
Typical Turn-Off Delay Time (ns)	15
Typical Turn-On Delay Time (ns)	5.7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Micro
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
