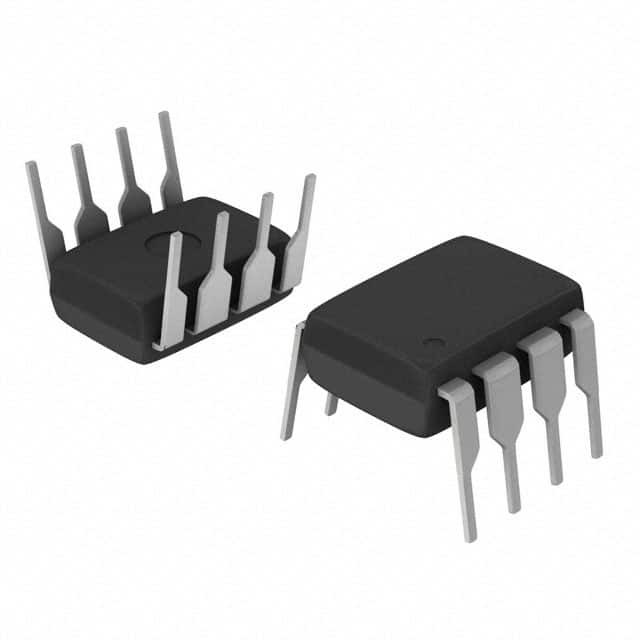

IR2111

SKU: 11902

Manufacturer: Infineon Technologies AG

Driver 600V 0.5A 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin PDIP T/R

13780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	130
Maximum Fall Time (ns)	65
Maximum Propagation Delay Time (ns)	950
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Maximum Supply Current (mA)	0.18
Typical Input Low Threshold Voltage (V)	8.2
Typical Input High Threshold Voltage (V)	8.6
Reference Voltage (V)	600(Max)
Peak Output Current (A)	0.5(Typ)
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Maximum Turn-On Delay Time (ns)	30(Typ)
Maximum Turn-Off Delay Time (ns)	30(Typ)
Packing Method	Tape and Reel
Original Package	PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.33(Max) - 0.39(Min)
Package Length	10.92(Max)
Package Width	7.11(Max)
PCB changed	8
