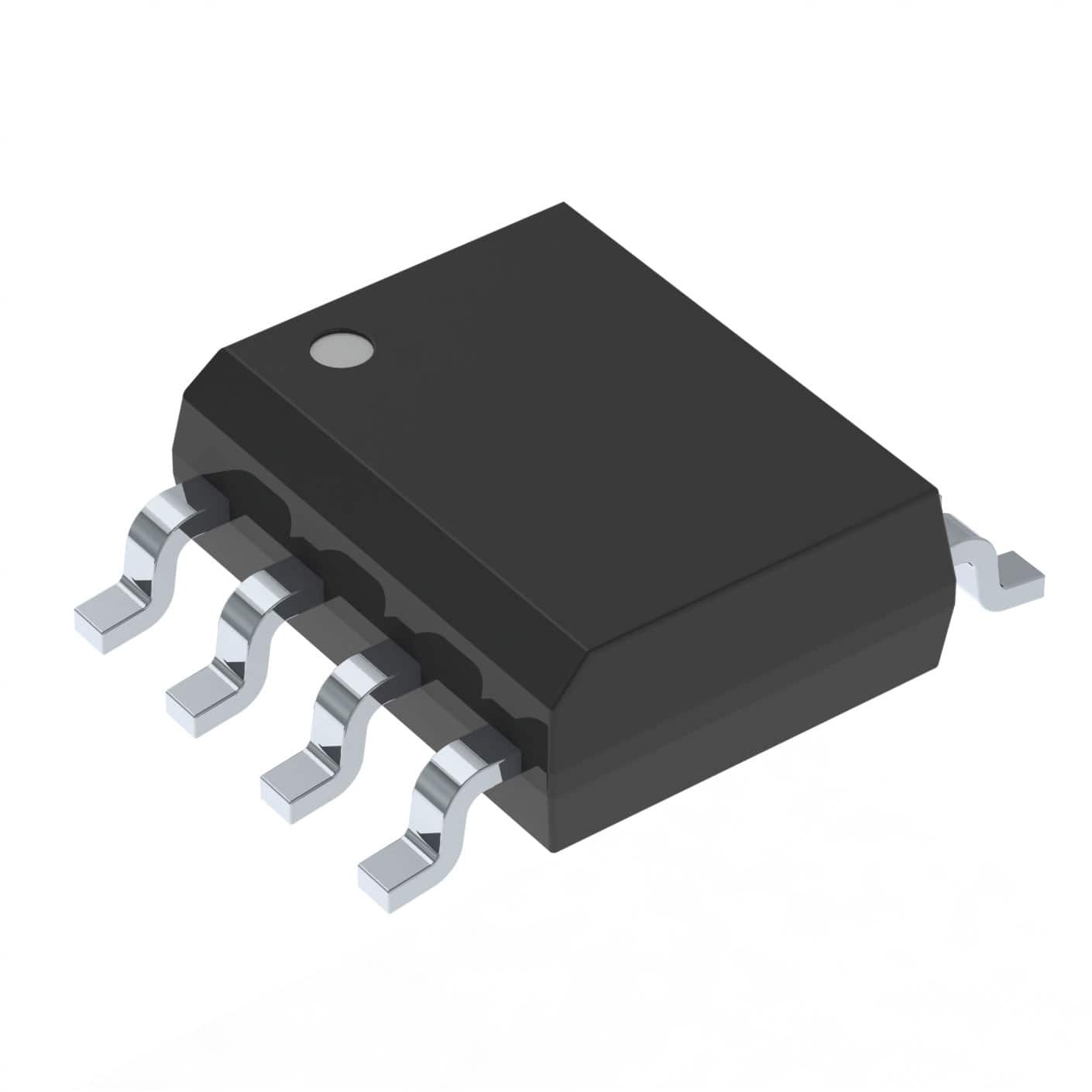

IR2101S

SKU: 110968

Manufacturer: Infineon Technologies AG

Driver 600V 0.36A 2-OUT High and Low Side 8-Pin SOIC N

103180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	170
Maximum Fall Time (ns)	90
Maximum Propagation Delay Time (ns)	220
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Maximum Supply Current (mA)	0.27
Typical Input Low Threshold Voltage (V)	8.2
Typical Input High Threshold Voltage (V)	8.9
Reference Voltage (V)	600(Max)
Peak Output Current (A)	0.36(Typ)
Maximum Power Dissipation (mW)	625
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Maximum Turn-On Delay Time (ns)	50
Maximum Turn-Off Delay Time (ns)	50
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
