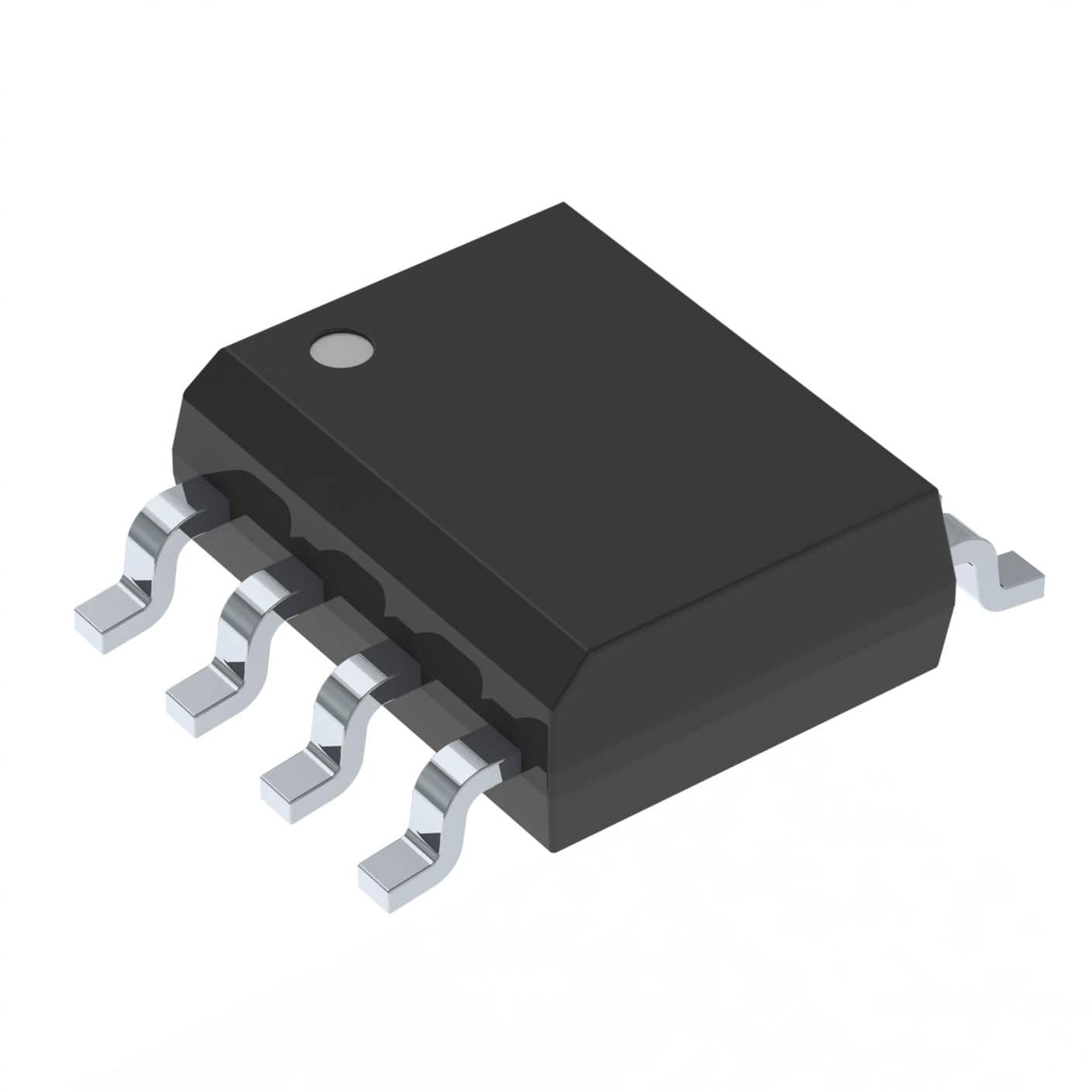

IR2011S

SKU: 47451

Manufacturer: Infineon Technologies AG

Driver 200V 1A 2-OUT High and Low Side Non-Inv 8-Pin SOIC N

1240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	50
Maximum Fall Time (ns)	35
Maximum Propagation Delay Time (ns)	80(Typ)
Input Logic Compatibility	3.3V
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Maximum Supply Current (mA)	0.23
Typical Input Low Threshold Voltage (V)	8.2
Typical Input High Threshold Voltage (V)	9
Reference Voltage (V)	200(Max)
Peak Output Current (A)	1(Typ)
Maximum Power Dissipation (mW)	625
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Maximum Turn-On Delay Time (ns)	20
Maximum Turn-Off Delay Time (ns)	20
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
